120W single output with battery charger (UPS function) 27.6V 3.4A, 27.6V 1A
Pickup in department 1-5 b.d.
 3 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Quantity in shop
| 3 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description
MAIN FEATURES
-Integrated battery charger and UPS function
- TTL signals for status detection: AC OK, Battery Disconnect, Battery Reverse Polarity, Battery Low, Battery Full and Battery Low.
-Integrated AC and battery circuit ON/OFF switch increases safety during maintenance
-Forced UPS mode for battery maintenance and improved battery life
- Protection against: short circuit / overload / overvoltage / overtemperature / over low battery voltage / battery reverse polarity (without damage)
- Operating temperature range-20~60°C
- VR adjustable output voltage (-20%~+5%) CH1
- Suitable for lead acid and lithium ion batteries
- Safety standards: UL62368-1, EN62368-1, GB17945
- 1U low profile (30 mm)
- 3 year warranty
APPLICATION
Fire protection and evacuation systems
-Public Safety Standby Power Systems
-Security systems
-DC-UPS uninterruptible power supply system
-Centralised monitoring systems
Industrial Automation
SHORT DESCRIPTION
The LAD-120 series AC/DC power supplies with UPS function are cost-effective, low profile. It is the perfect solution for security systems where uninterruptible power supply is required. The power supply can be supplied with voltages from 90VAC to 264VAC. Versions are available with output voltages of 13.3V, 27.6V, 41.5V and 55.2VDC.The power supply has a high efficiency of 88% and has integrated mains voltage and battery switches for ease of system maintenance. The LAD-120 series power supplies have TTL signals for system monitoring: AC OK, battery disconnected, battery reversed (no damage to the system), battery discharged, battery fully charged, battery discharged. These signals make it easy to integrate the LAD series power supply into any security or fire protection system.

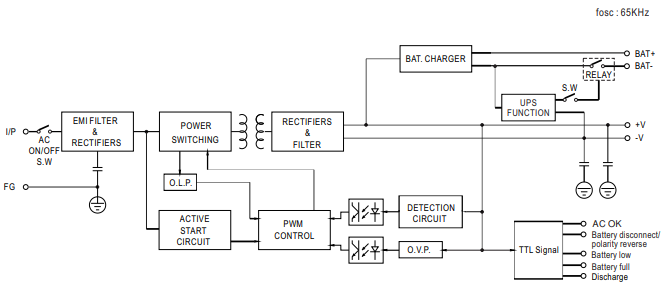

BLOCK SCHEME
MAXIMUM LOAD DEPENDING ON AMBIENT TEMPERATURE
MAX POWER DEPENDING ON THE SUPPLY VOLTAGE LEVEL

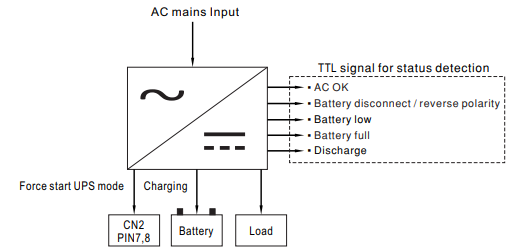

1. DC-UPS FUNCTION
When the mains voltage becomes abnormal, the UPS function is activated and the connected devices are powered by the battery
2. OBTAINING FUNCTIONAL SIGNALS USING TTL
Functional signals are sent via connector CN2.
An external power supply is required to receive TTL signals. Maximum voltage 50VDC, maximum current in the circuit 30mA.
2.1 AC OK: MAINS VOLTAGE STATUS
2.2 BATTERY STATUS: DISCONNECTED/CONNECTED WITH INCORRECT POLARITY
2.3 DISCHARGED BATTERIES
2.4 FULLY CHARGED BATTERY
2.5 DISCHARGING THE BATTERY
2.6 FORCED ACTIVATION OF UPS MODE

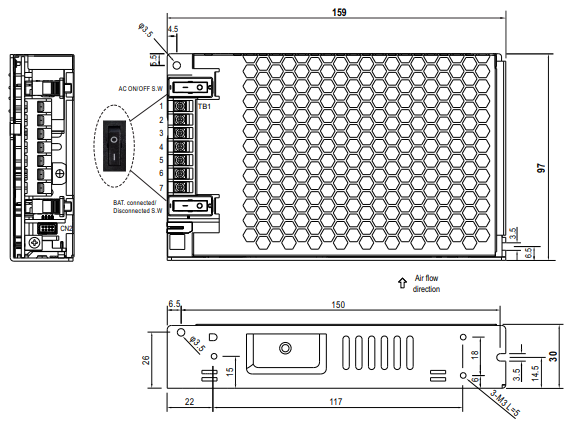

MECHANICAL SPECIFICATION
SPECIFICATION OF CONNECTIONS
