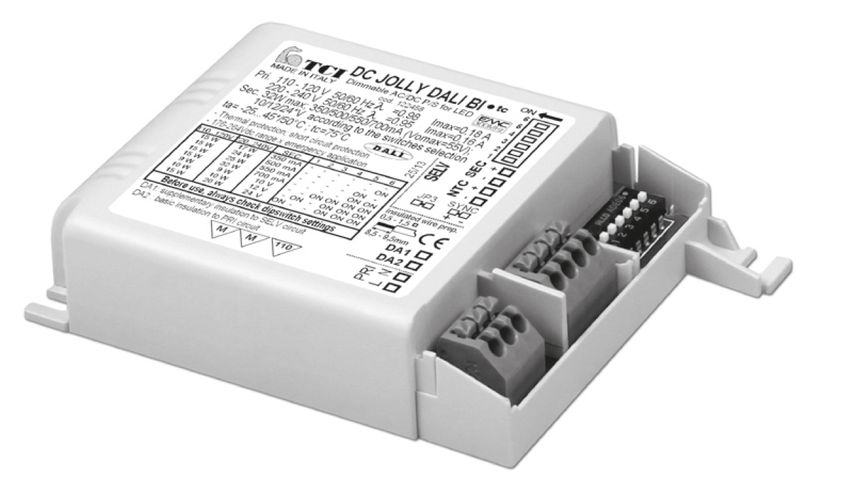

32W constant current LED driver 250-700mA, 3-48V, DALI2, PWM-AM by TCI
Product Code: 125458
Delivery terms
Order processing
Order processing
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
We will notify you via SMS and email when your order is being delivered.
Quantity in shop
 Not available | Lemona Estonia warehouse |
| Not available | Lemona Vilnius warehouse 1 |
| Not available | Lemona Vilnius warehouse 2 |
| Not available | Lemona Kaunas warehouse |
| Not available | Lemona Klaipėda warehouse |
| Not available | Lemona Šiauliai warehouse |
| Not available | Lemona central warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Useful information
Specifications
Supplier product description
Useful information
Supplier parameters

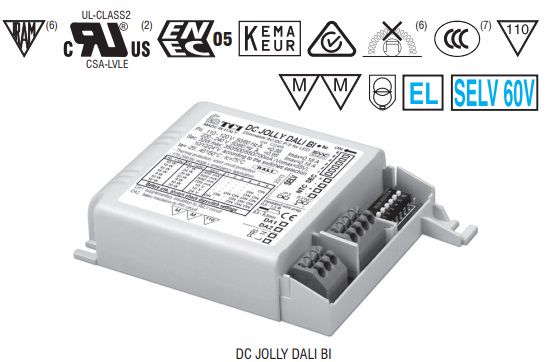

Approvals
CE; EAC ; ENEC; KEMAKEUR; RCM; UKCA; UL (class 2)

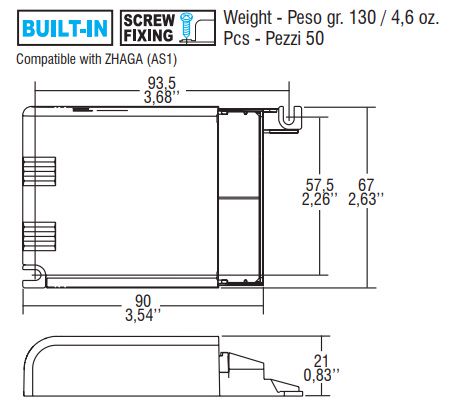

Case
for Built-in; Square; ZHAGA AS1
Constant current
250 mA; 300 mA; 350 mA; 400 mA; 450 mA; 500 mA; 550 mA; 600 mA; 650 mA; 700 mA
Constant voltage
12 V; 24 V
Depth
67

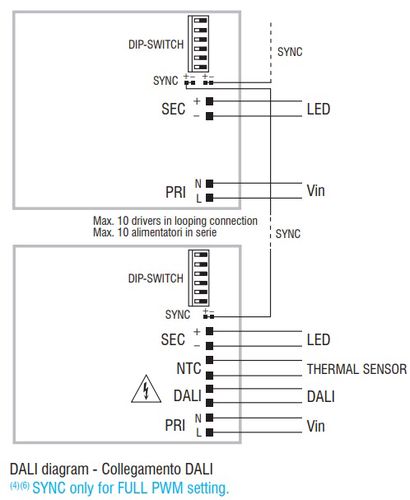

Dimming
DALI-2 (also DALI-1); SYNC/PWM INPUT
Height
21
Others
4/5 kV DM/CM SURGE Input Protection; ACTIVE PFC (pf>0.9); DIMMING: AM + PWM (MIXED) IEEE1789-2015; DIMMING: PWM; EXTERNAL NTC INPUT; RIPPLE FREE; SELV <60V; WIDE RANGE INPUT VOLTAGE
Width
90
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
