Product description

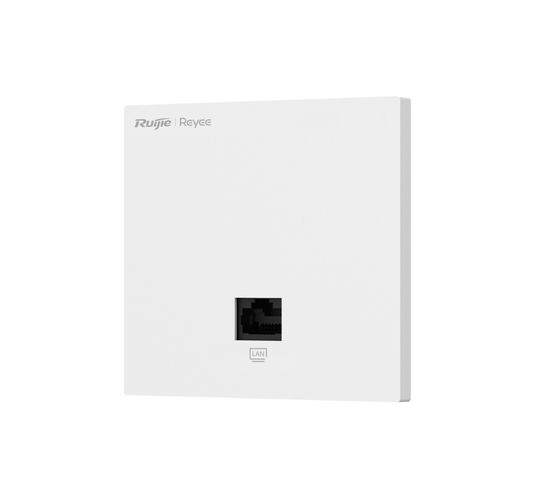

Access Point Ruijie Reyee RG-RAP1201
Specifications
SKU
U-4645688
Product code
RUIJIERGRAP1201
Supplier product description
- Type: Access Point
- Brand: Ruijie Reyee
- Model: RG-RAP1201
- Wi-Fi Standard: Wi-Fi 5 (802.11ac Wave2)
- Ports: 2 x 1 Gbps RJ45
- Wi-Fi Speed: up to 400 Mbps @ 2.4 GHz; 867 Mbps @ 5 GHz
- Recommended devices: 40 (max 110)
- MIMO: 2x2 @ 2.4 GHz; 2x2 @ 5 GHz
- Power Consumption: ≤ 9 W
- Power Supply: 802.3af/at PoE
- Operating Temperature: 0°C to 40°C
- Warranty: 3 years
- General
- ModelRG-RAP1201
- TypeWall-mounted Wi-Fi 5 Access Point
- Wi-Fi Standard802.11ac Wave 2 (Dual-band)
- Max Wireless Speed1267 Mbps (867 Mbps on 5GHz, 400 Mbps on 2.4GHz)
- MIMO Configuration2x2 MU-MIMO on both bands
- Antenna TypeBuilt-in (2 dBi gain for both 2.4 GHz and 5 GHz)
- Max Number of Clients110
- Recommended Clients40
- SSID SupportUp to 8 SSIDs, with SSID hiding and VLAN assignment
- RoamingSupports Layer 2 and Layer 3 roaming
- SecurityPSK authentication, blacklist/whitelist, WPA, WPA2, WPA-PSK encryption
- Routing SupportStatic IP, DHCP, PPPoE Dial-Up
- PortsFront: 1x 10/100/1000Base-T, Rear: 1x 10/100/1000Base-T (PoE in)
- Power SupplyPoE (IEEE 802.3af/at)
- Power Consumption≤ 9W
- Management MethodsRuijie Cloud, local web UI, Ruijie Reyee app, SON (Self-Organizing Network)
- Cloud FeaturesRemote monitoring, portal authentication, centralized management
- Optimization FeaturesWIO (WiFi Intelligent Optimization) – one-click optimization
- Mounting StyleWall plate (86mm EU/US/Standard)
- Dimensions86 x 86 x 42.4 mm
- Weight0.14 kg
- Operating Temperature0°C ~ 40°C
- Storage Temperature-40°C ~ 70°C
- Humidity5% ~ 95% non-condensing
- Safety & EMC StandardsGB4943, IEC 62368-1, EN301 489, EN55032, EN61000, EN50121, EN55035
- Vibration StandardIEC61373
- Radio CertificationSRRC, EN300 328, EN301 893
- MTBF>400,000 hours
