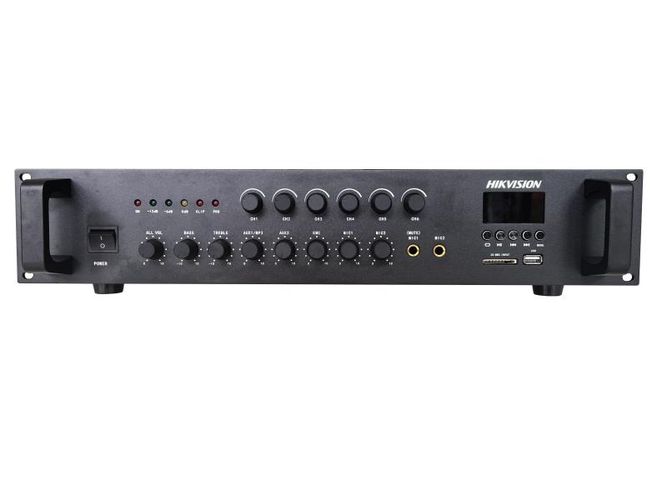

Analog amplifier Hikvision DS-QAE0A240G1-VB6 (240W, Bluetooth, USB)
Product Code: HIKSOUQAE0A240G1VB
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-19 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
3,50
Product description
Analog amplifier Hikvision DS-QAE0A240G1-VB6 (240W, Bluetooth, USB)
Specifications
Supplier product description
- Type: Analog amplifier
- Brand: Hik-vision
- Model: DS-QAE0A240G1-VB6
- Power: 240W
- Audio connections: Bluetooth, USB, microphone, RCA
- Sound control: Separate control for microphone and 2-channel
- Power supply: 24 VDC
- Body material: Plastic
- Audio
- Rated Power240W
- Sensitivity
Line: -10dB
EMC: -10dB
MIC: -40dB
line：0dB
- Frequency Response80Hz-18KHz（±3dB）
- THD and SNR
THD≤0.5%
SNR≥75dB
- Interface
- Audio In
6.5 mm Microphone × 2,
AUX IN × 2,
1*EMC IN,
Bluetooth,
USB2.0
SD card
- Audio Out
Constant Voltage Output × 2，100 V COM,
line out × 1,
- Volume Knob
MIC Volume Knob × 2，
Partition 1 Volume Knob × 6，
All Volume Knob × 1，
Bass Volume Knob × 1，
Treble Volume Knob ×1，
AUX1/MP3 Volume Knob ×1,
AUX2 Volume Knob ×1,
EMC Volume Knob ×1
- USBUSB2.0
- General
- Power200V-230V～, 50/60Hz 7A
- MaterialIron
- Dimension484 × 88 × 360mm
- WeightApprox. 10.3 kg (22.71 lb.)
- Package Dimension484 × 88 × 395mm
- With Package WeightApprox. 11 Kg(24.25 lb.)
- ColorBlack
- Packing ListOne machine, one power cord, and one manual
- Operating Temperature
-10~+ 40°C ,（±2）
20%~80% relative humidity
- InstallationCabinet installation
Supplier parameters
Supplier's product code
HIKSOUQAE0A240G1VB
Product ID
U-4593044
Category
Video, audio, and stage equipment
Product code
HIKSOUQAE0A240G1VB
Brand
Hikvision
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
