Product description

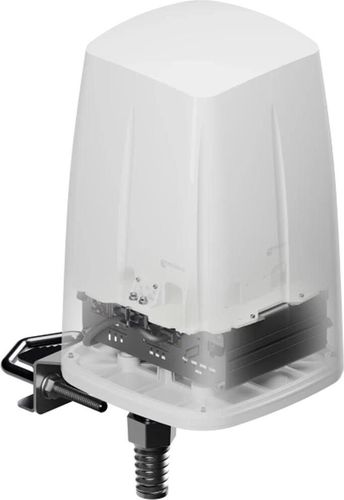

Antenna Teltonika PR1ICC60 for RUT9 routers
Specifications
Supplier product description
- Type: Antenna
- Model: PR1ICC60
- Compatible with: Teltonika RUT9 routers
- Frequency range: 617~960, 1700~2700, 3300~4300 MHz
- Gain: Max 4.5 dBi
- Connectors: LTE 2xSMA, GNSS 1xSMA
- Cables: 4xRG316, 1xRG174
- Operating temperature: -40...5°C
- General
- Frequency Range617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
- PolarisationVertical
- Radiation pattern typeOmnidirectional
- GainMax 4.5 dBi
- V.S.W.R< 2.50
- Impedance50 Ω
- Connector type and count2x SMA male
- GNSS ANTENNA Frequency Range1560 ~ 1610 MHz
- GNSS ANTENNA PolarisationRHCP
- GNSS ANTENNA Gain28 dBi
- GNSS ANTENNA V.S.W.R< 2.00
- GNSS ANTENNA Impedance50 Ω
- GNSS ANTENNA Connector type and count1x SMA male
- GNSS ANTENNA Current consumption2.5 - 6.5 mA
- GNSS ANTENNA Supply voltage2.5 - 6.5 VDC
- WI-FI ANTENNA Frequency Range2400 ~ 2500, 4700 ~ 6000 MHz
- WI-FI ANTENNA PolarisationVertical
- WI-FI ANTENNA Radiation pattern typeOmnidirectional
- WI-FI ANTENNA GainMax 7.5 dBi
- WI-FI ANTENNA V.S.W.R< 2.00
- WI-FI ANTENNA Impedance50 Ω
- WI-FI ANTENNA Connector type and count2x RP-SMA male
- Cable4x RG316, 1x RG174
- Operating Temperature-40 °C to 75 °C
- Mounting MethodWall, ceiling, mast
- IP ratingIP67
- Weight1500 g
- RoHS compliantYes
Supplier parameters
Product code
TELTONPR1ICC60
Brand
Teltonika
Category
Ante
Supplier's product code
TELTONPR1ICC60
Product ID
U-4645691
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
