Charger Li-ion batteries 3.7V 10440-26650 with LED, from USB
Home delivery 1-4 b.d.
Delivery to DPD Pickup locations 1-4 b.d.
Delivery terms
Order processing
Order processing
Quantity in shop
 Not available | Lemona Estonia warehouse |
 3 pcs | Lemona Vilnius warehouse 1 |
| 1 pcs | Lemona Vilnius warehouse 2 |
| 7 pcs | Lemona Kaunas warehouse |
| 7 pcs | Lemona Klaipėda warehouse |
| 4 pcs | Lemona Šiauliai warehouse |
| >20 pcs | Lemona central warehouse |
Home delivery
Home delivery
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
3,50
Product description
Professional compact processor charger
ANT-MC1 Plus
for Li-ion batteries in sizes 18650 and others
•CPU-controlled three-stage TC/CC/CV charging process |
In the new version of the MC1 Plus model, Xtar has introduced a very simple, but at the same time very functional LED display informing about the progress of battery charging and charging current.
Hidden in the small casing is a fully professional processor charger with a three-stage TC/CC/CV charging process. Charges 3.6/3.7V Li-ion cells of any capacity in sizes 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650.
What is the TC/CC/CV loading method? It is a three-stage charging process for Li-ion cells that ensures that the cell is kept in good condition by charging with the right current at each stage and completing the charging process at the right time.
The different steps of the TC/CC/CV process are:
•TC phase: cells discharged below 2.9V are 'woken up' with a lower current.
• CC phase: after reaching 2.9V, the cell is charged with a constant current of 0.5A (batteries up to 54mm long) or 1A (batteries over 54mm long).
•CV phase: when the cell is almost charged, the charger switches to charging with decreasing current until the voltage of 4.2V on the cell is reached. Once 4.2V is reached, the charging process is complete - the battery is fully charged.
Batteries with a voltage of 4.0V or higher are treated as charged by the charger. To fully charge such a battery, insert it into the charger before turning it on. Charged batteries left in the charger will undergo a natural self-discharge process. Charging will resume when the battery voltage drops below 4.1V.
The Xtar ANT MC1 Plus charger has the function of reactivating deeply discharged cells and cells with a voltage of 0V. Many chargers on the market are not able to charge such batteries. This is where the Xtar ANT-MC1 Plus charger comes to the rescue, which in many cases allows you to 'rescue' such cells. Simply insert a deeply discharged battery into the ANT-MC1 Plus charger as you would with normal charging - the charger will detect the discharged battery and attempt to reactivate it. Remark! Cells discharged below a certain level are irreversibly damaged and may not be able to reactivate. Avoid discharging Li-ion batteries too deeply - this can lead to a significant reduction in their durability and capacity or lead to their complete inefficiency.
Chargers from other manufacturers can significantly increase the temperature of the charged cells during charging. Excessive heating of the cells can cause them to wear out faster
ie. With the ANT-MC1 Plus, Xtar has gone one step further from the competition by solving this problem in a simple way: using an external power supply. Thanks to this, the temperature of the battery charged in the MC1 Plus will increase by no more than 15 degrees.
The Xtar ANT-MC1 Plus charger comes with a micro USB cable and a cover to protect the charger during transport. A power adapter is not included. To power the charger, all you need is any charger with a micro USB cable, e.g. from a phone, or a USB socket, or a computer with a free USB port. The recommended minimum power of the charger is 1A (1000mA). It is possible to use a charger with less power, but in this case the charging time will be longer.
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- 5V DC(Minimum 0,5A, rekomendowane 1A)
- Processor-controlled TC/CC/CV for Li-ion
- Rechargeable batteries with a length of <54mm: 500mA ±50mA
- batteries with a length of >54mm: 1000mA ±80mA
- 4.2V ±0.05V
- Reactivation of deeply discharged cells and 0V cells
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
- Charge
- ANT MC1 Plus Charger
- Micro USB cable
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- 5V DC(Minimum 0,5A, rekomendowane 1A)
- Processor-controlled TC/CC/CV for Li-ion
- Rechargeable batteries with a length of <54mm: 500mA ±50mA
- batteries with a length of >54mm: 1000mA ±80mA
- 4.2V ±0.05V
- Reactivation of deeply discharged cells and 0V cells
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
- Charge
Useful information
Specifications
Experimental product description generated by artificial intelligence
XTAR Li-ion Battery Charger for 3.7V 10440-26650 Batteries
The XTAR Li-ion battery charger is a versatile and reliable solution for charging your 3.7V Li-ion rechargeable batteries. This compact charger supports a wide range of battery sizes, making it ideal for various applications.
Key Features and Benefits
- Ultra-Compact Design: Its small size makes it perfect for travel and storage.
- Wide Compatibility: Charges a variety of Li-ion battery types and sizes, including 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650, 25500, and 26650.

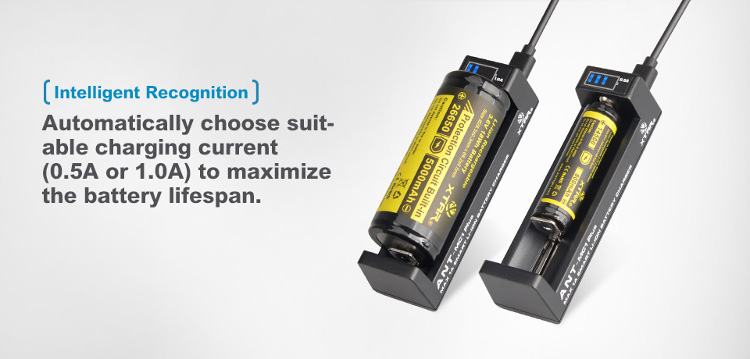

- Intelligent Charging: Automatically selects the optimal charging current (0.5A or 1.0A) to maximize battery lifespan and prevent overcharging.

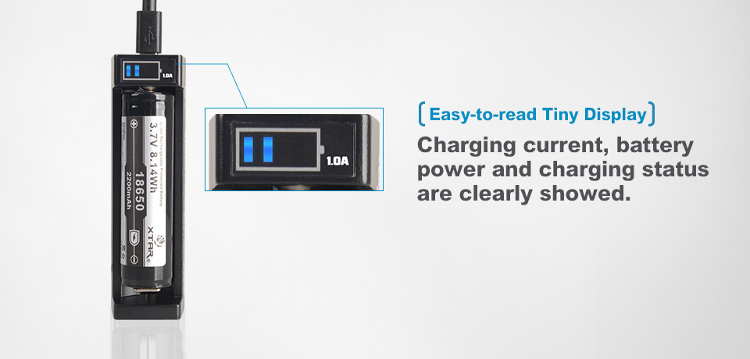

- Easy-to-Read Display: Clearly shows charging current, battery power, and charging status.

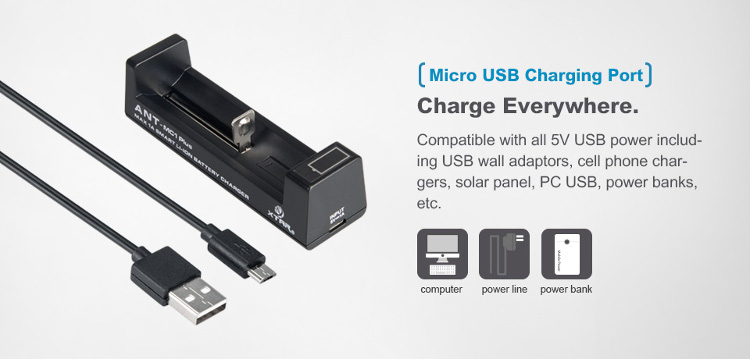

- Micro USB Charging: Conveniently charges using any 5V USB power source, including wall adapters, power banks, and computers.
- 0V Activation: Can recharge low-voltage or damaged batteries.
- Safety Features: Includes reverse polarity and short-circuit protection, ensuring safe and reliable charging.
- Durable and Reliable: Made with high-quality materials and backed by a 2-year warranty.
Why Choose XTAR?
XTAR is a reputable brand known for producing high-quality, safe, and reliable battery chargers. This charger offers a combination of features, convenience, and safety that make it a top choice for anyone needing a reliable way to charge their Li-ion batteries.
Applications
This charger is suitable for various applications where 3.7V Li-ion batteries are used, including flashlights, power tools, and other electronic devices.
| Parameter | Value |
|---|---|
| Input | DC 5.0V/1000mA |
| 0.5A Constant Current | 500mA |
| 1.0A Constant Current | 1000mA |
| Cut-off Voltage | 4.2V |
| Operating Temperature | 0-40℃ |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
