Product description

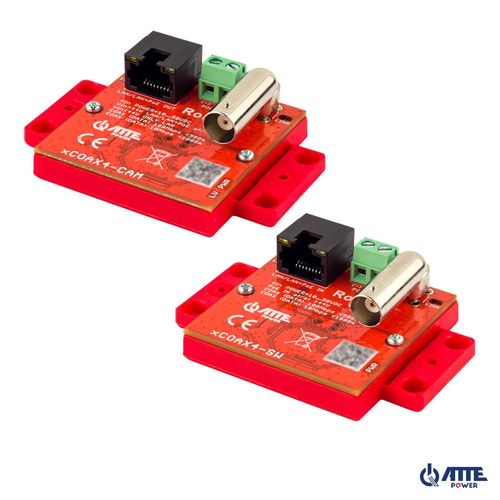

Converter ATTE XCOAX4-SET
Specifications
SKU
U-4680232
Product code
ATTEXCOAX4SET
Supplier product description
- Type: Converter
- Model: ATTE XCOAX4-SET
- Function: Ethernet to PoE over coaxial cable
- Connections: 2 x PoE, 2 x BNC
- LAN speed: 100 Mbps
- PoE input/output: via LAN
- Voltage: 58 V
- Power: 60 W
- Transmission range: up to 1 km via coaxial cable (from xCOAX4-SW to xCOAX4-CAM)
- Operating temperature: -25...+65 °C
- Specifications
- Total number of ports:2 PoE Ports, 2 BNC Ports (female)
- PoE IN:LAN/LAN + PoE IN 802.3af/at, PoE Passive
- PoE OUT:LAN/LAN + PoE OUT 802.3af/at/bt60
- PoE IN/OUT:LAN/LAN + PoE IN, LAN/LAN + PoE OUT
- LAN 10/100Mbps ports:LAN/LAN + PoE OUT
- Input Voltage:10 ... 58 V (for powering PoE receivers Vin>44V DC)
- Output PoE Voltage:Vout = Vin (44... 58 V)
- Maximum output power from the port:LAN/LAN + PoE OUT - 60 W
- Power consumption:1,35 W (full channel)
- Output power control:Auto-negotiation
- Surge protection:LAN and BNC Ports
- Overload protection:xCOAX4-SW - Short circuit protection with auto recovery
- Length of coaxial cable:< 1000m - xCOAX4-SW to xCOAX4-CAM
- Coaxial track signalling:LED LINK at the BNC connector (green) - link and data transmission in the COAX channe
- Power indication:LED PWR - Power presence
- PoE indication:LED port RJ45 (yellow) - PoE Power
- Transmission indication:LED port RJ45 (green) - link and data transmission LED LINK at the BNC connector (green) - link and data transmission in the COAX channel
- LAN bandwidth indication:LED 10Mb – LAN transmission in the XCOAX channel at a speed of 10Mbps
- Low Voltage indication:LED LV Low Voltage signaling diode
- Temperature range:-25°C ... +65°C
- Dimensions:51(73) x 51 x 23 mm
- Weight:0,06 kg
- IP rating:IP20
- Housing construction:Uniwersal mounting base
- Assembly:Mounting studs, TH35 rail with additional bracket, can be screwed to flat surface
- EAN code:5902143691464
- PKWiU code:26.30.23.0
- HS code:8517 62
- CN2020 code:8517 62 00
