Product description

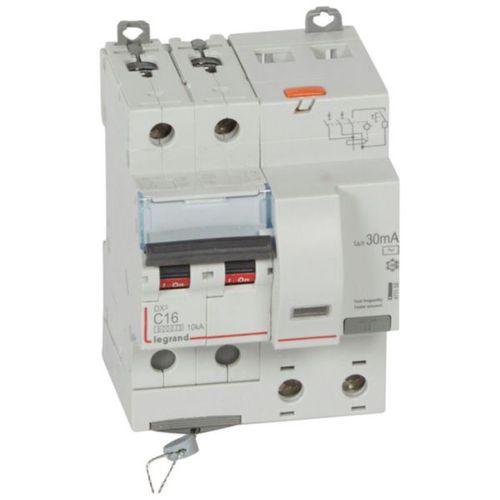

Residual current circuit breaker with automatic switch Legrand 411158 (2P, 16A, C, 30mA, 10kA, AC)
Specifications
Supplier product description
- Type: Residual current relay with circuit breaker
- Number of poles: 2P
- Current rating: 16A
- Characteristic: C
- Leakage type: AC
- Sensitivity: 30mA
- Breaking capacity: 10kA
- Brand: Legrand
- Model: 411158
- General
- Number of poles (total)2
- Number of protected poles2
- Rated voltage230 V
- Rated current16 A
- Rated fault current0.03 A
- Leakage current typeAC
- Current limiting class3
- Rated short-circuit breaking capacity according to EN 610096 kA
- Rated short-circuit breaking capacity according to IEC 60947-210 kA
- Rated short-circuit breaking capacity Icn according to EN 61009-16 kA
- Surge current capacity0.25 kA
- Voltage typeAC
- Frequency50 Hz
- Release characteristicC
- Concurrently switching neutral conductorYes
- With interlocking deviceYes
- Pollution degree2
- Width in number of modular spacings4
- Built-in depth44 mm
- Flush-mounted installationYes
- Anti-nuisance tripping versionNo
- Degree of protection (IP)IP20
- Connectable conductor cross section solid-core1-35 mm²
- Connectable conductor cross section multi-wired1-25 mm²
Supplier parameters
Product code
L411158
Category
Management and control
Brand
Legrand
Supplier's product code
L411158
Product ID
U-3065526
