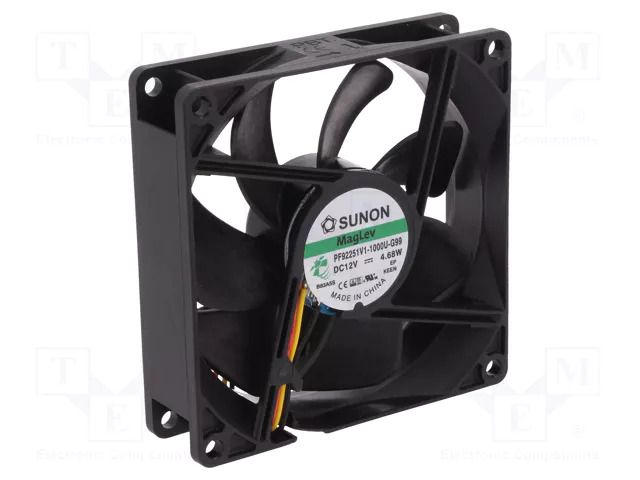

Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG SUNON
Product Code: PF92251V1-G99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-11 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 3417 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG
Useful information
Supplier parameters
Brand
SUNON
Supplier's product code
PF92251V1-G99-A
Product ID
U-286952
Additional functions
autorestart
Current rating
0.37A
Enclosure material
thermoplastic
Fan dimensions
92x92x25mm
Fan efficiency
126.75m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.305m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
45.5dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
4.44W
Rotational rate/speed
4500rpm
Signal output
F type
Static pressure
8.89mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Product code
PF92251V1-G99-A
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
