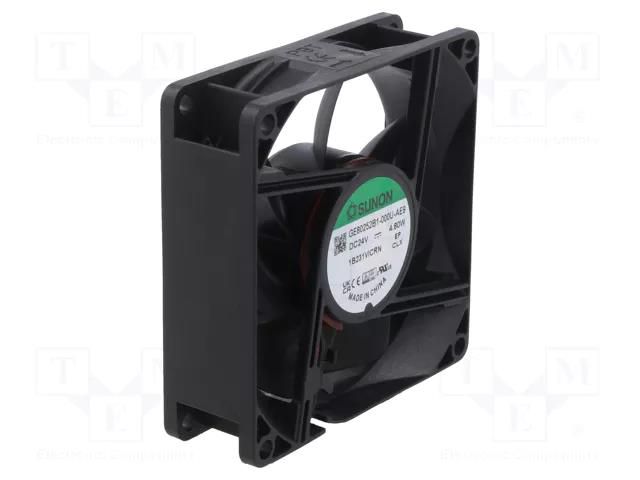

Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball; IP68 SUNON
Product Code: GE80252B1-AE9
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-10-27 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 78 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball; IP68 SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball; IP68
Useful information
Supplier parameters
Product code
GE80252B1-AE9
Brand
SUNON
Supplier's product code
GE80252B1-AE9
Product ID
U-195557
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.2A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
101.9m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
IP rating
IP68
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.32m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
47.5dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
4.8W
Rotational rate/speed
4800 (±10%)rpm
Static pressure
10.414mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
