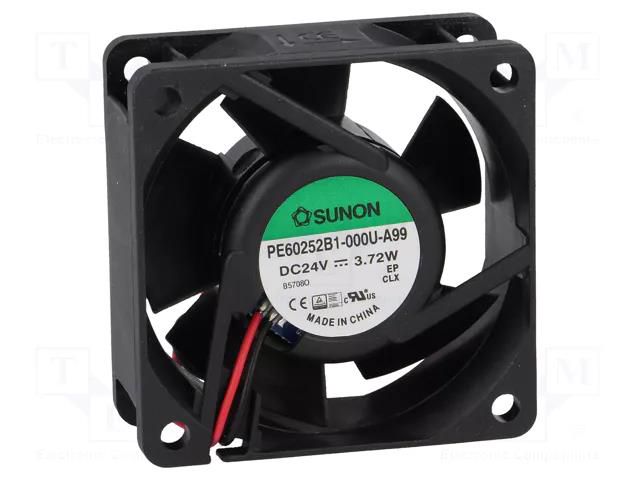

Fan: DC; axial; 24VDC; 60x60x25mm; 61.16m3/h; 44dBA; ball; 26AWG SUNON
Product Code: PE60252B1-A99
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-12 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 4546 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
3,50
Product description
Fan: DC; axial; 24VDC; 60x60x25mm; 61.16m3/h; 44dBA; ball; 26AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 60x60x25mm; 61.16m3/h; 44dBA; ball; 26AWG
Useful information
Supplier parameters
Product code
PE60252B1-A99
Supplier's product code
PE60252B1-A99
Product ID
U-286477
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
0.155A
Enclosure material
thermoplastic
Fan dimensions
60x60x25mm
Fan efficiency
61.16m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
44dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
3.72W
Related items
SRF4-30
Rotational rate/speed
6900 (±15%)rpm
Static pressure
13.71mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
