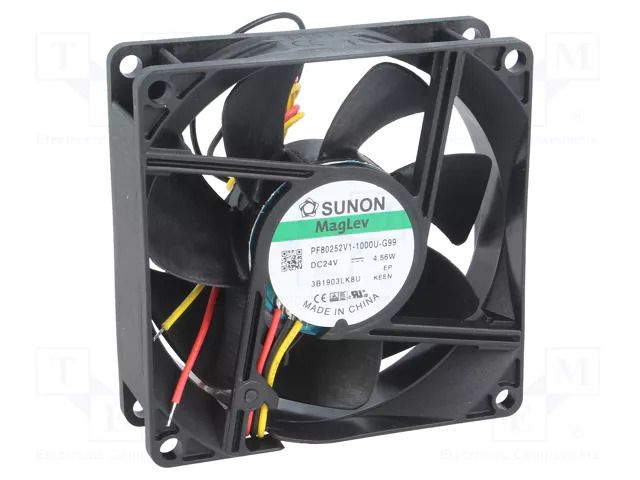

Fan: DC; axial; 24VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm SUNON
Product Code: PF80252V1-G99-A
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-10-27 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 946 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm SUNON
Useful information
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 101.4m3/h; 44.7dBA; Vapo; 4800rpm
Useful information
Supplier parameters
Product code
PF80252V1-G99-A
Supplier's product code
PF80252V1-G99-A
Product ID
U-286942
Additional functions
autorestart
Current rating
0.18A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
101.4m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Lead length
0.315m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
44.7dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
4.32W
Rotational rate/speed
4800rpm
Signal output
F type
Static pressure
10.41mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
