Product description

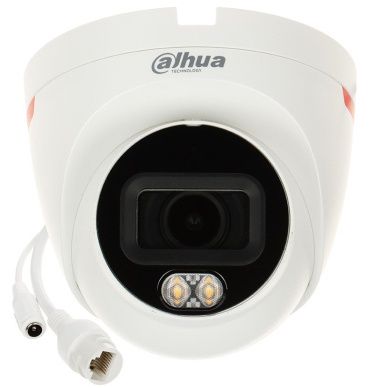

Dome camera Dahua IPC-HDW2449T-S-LED-0280B-PRO F2.8 (4MP, 112°, IR+LED 30m, IP67, IK10)
Specifications
SKU
U-4645633
Product code
DAHIPCHDW2449TSLED28
Supplier product description
- Type: Dome camera
- Model: Dahua IPC-HDW2449T-S-LED-0280B-PRO
- Resolution: 4 MP (2688 × 1520)
- Lens: 2.8 mm (horizontal FOV: 101°, diagonal FOV: 120°)
- Illumination: Dual (IR + white light), up to 30 m
- Sensor: 1/2.9" CMOS
- WDR: 120 dB
- Noise reduction: 3D DNR
- Smart features: Intrusion, tripwire (human/vehicle detection)
- Audio: Built-in microphone
- Compression: H.265, H.264, Smart H.265+, Smart H.264+
- Storage: Micro SD card up to 256 GB
- Power supply: 12 VDC / PoE (802.3af)
- Protection: IP67, IK10
- Operating temperature: –40°C to +60°C
- General
- Image Sensor1/1.8" CMOS
- Max. Resolution2688 (H) × 1520 (V)
- ROM128 MB
- RAM256 MB
- Scanning SystemProgressive
- Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
- Min. Illumination0.0005 [email protected]
- S/N Ratio>56 dB
- Illumination DistanceUp to 30 m (98.43 ft) (Warm light)
- Illuminator On/Off ControlAuto; Manual
- Illuminator Number2 (Warm light)
- Angle AdjustmentPan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Lens TypeFixed-focal
- Lens MountM16
- Focal Length2.8 mm; 3.6 mm
- Max. ApertureF1.0
- Field of View2.8 mm: H: 112°; V: 60°; D: 134°, 3.6 mm: H: 94°; V: 50°; D: 113°
- Iris ControlFixed
- Close Focus Distance2.8 mm: 2 m (6.56 ft), 3.6 mm: 3 m (9.84 ft)
- DORI Distance2.8 mm: Detect 57.9 m, Observe 23.2 m, Recognize 11.6 m, Identify 5.8 m; 3.6 mm: Detect 70.3 m, Observe 28.1 m, Recognize 14.1 m, Identify 7.0 m
- IVS (Perimeter Protection)Intrusion, tripwire (classification and accurate detection of vehicle and human)
- SMDSMD Plus
- Smart SearchWorks with Smart NVR for refined intelligent search, event extraction, and merging to event videos
- Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
- Smart CodecSmart H.265+; Smart H.264+
- Video Frame RateMain: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps), Sub: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
- Streaming Capability2 streams
- Resolution4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
- Bit Rate ControlVBR; CBR
- Video Bit RateH.264: 32–6144 kbps; H.265: 12–6144 kbps
- Day/NightColor/B/W
- BLCYes
- HLCYes
- WDR120 dB
- White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
- Gain ControlAuto/Manual
- Noise Reduction3D NR
- Motion DetectionON/OFF (4 areas, rectangular)
- Region of Interest (RoI)Yes (4 areas)
- Smart IlluminationYes
- Image Rotation0°/90°/180°/270° (90°/270° with 2688 × 1520 resolution and lower)
- MirrorYes
- Privacy Masking4 areas
- LDCYes
- Built-in MICYes
- Audio CompressionG.711a; G.711Mu; PCM; G.726
- Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
- Network PortRJ-45 (10/100 Base-T)
- SDK and APIYes
- Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
- InteroperabilityONVIF (Profile S, G, T); CGI
- User/Host20 (Total bandwidth: 48 M)
- StorageFTP; SFTP; Micro SD card (max. 256 GB); NAS
- BrowserIE; Chrome; Firefox
- Management SoftwareSmart PSS Lite; DSS; DMSS
- Mobile ClientiOS; Android
- SecurityDigest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 cert; syslog; HTTPS; 802.1x; Trusted boot/execution/upgrade; Session security; Security warning
- CertificationsCE-LVD: EN62368-1; CE-EMC: EMC Directive 2014/30/EU
- Power Supply12 VDC; PoE
- Power ConsumptionBasic: 2.0 W (12 VDC); 2.5 W (PoE); Max: 5.3 W (12 VDC); 6.4 W (PoE) with full features enabled
- Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity≤95% RH, non-condensing
- Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity≤95% RH, non-condensing
- ProtectionIP67
- Casing MaterialInner core: Metal; Cover: Plastic
- Product Dimensions109.5 mm × Φ109.9 mm (4.31" × Φ4.33")
- Net Weight0.42 kg (0.93 lb)
- Gross Weight0.59 kg (1.30 lb)
Supplier parameters
Product code
DAHIPCHDW2449TSLED28
Category
Dome Camera
Supplier's product code
DAHIPCHDW2449TSLED28
Product ID
U-4645633
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
