Product description

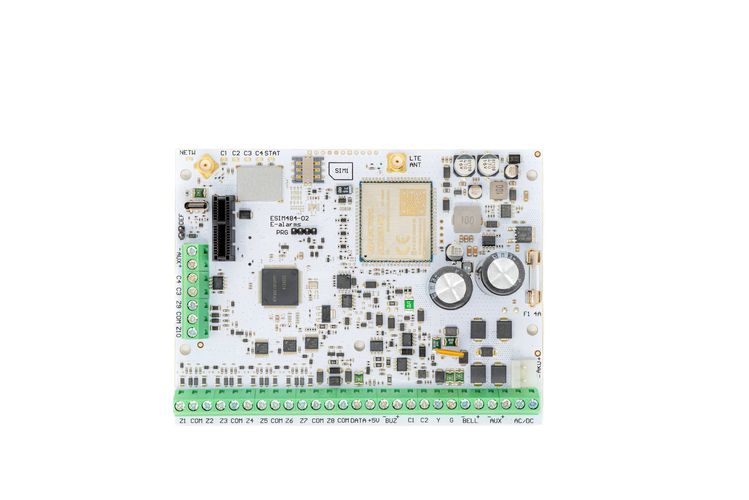

ELDES ESIM484
Specifications
Supplier product description
- Type: GSM control panel
- Model: ESIM484
- Zones: 10/20 ATZ
- Wireless zones: 32
- PGM outputs: 4
- Areas: 4
- SIM card: Nano SIM
- Modules: 2x EPGM1
- Brand: ELDES
- General
- Main power supply16–24V 50/60 Hz ~3A max / 18–24V 3A max
- Recommended backup battery capacity12V; 1.3–7Ah
- Backup battery charging timeUp to 30 hours for 7Ah battery
- GSM modem frequency850/900/1800/19, LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41, GSM: B2/3/5/8
- SIM card typeNano-SIM
- Number of wired PGM outputs4
- Number of wired zones on board10 (20 in ATZ mode)
- Zone count using 2xEPGM116+16
- PGM outputs using 2xEPGM12+2
- Max supported wireless zones124
- Max supported wireless devices64
- Total max supported zones144
- Supported third-party smoke detectors2-wire, 4-wire
- Supported number of third-party 2-wire smoke detectorsUp to 8
- Max number of temperature sensors8
- Wireless communication frequencyISM868
- Wireless communication rangeUp to 3000 m (open space)
- CommunicationSMS, LTE, Ethernet via Elan3 - Alarm
- Supported communication protocolsAdemco Contact ID, EGR100, Kronos, SIA IP
- Dimensions140x100x18 mm
- Operating temperature range-20…+55°C
- Humidity0–90% RH @ 0…+40°C (0–90% RH @ +32…+104°F)
Supplier parameters
Product code
RGSMESIM484
Category
Control Panels
Brand
Eldes
Supplier's product code
RGSMESIM484
Product ID
U-4675006
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
