Relay: interface; DPDT; Ucoil: 24VAC,24VDC; 6A; 3A/250VAC; 2A/24VDC PHOENIX CONTACT
Product Code: PLC-RSC-24UC/21-21

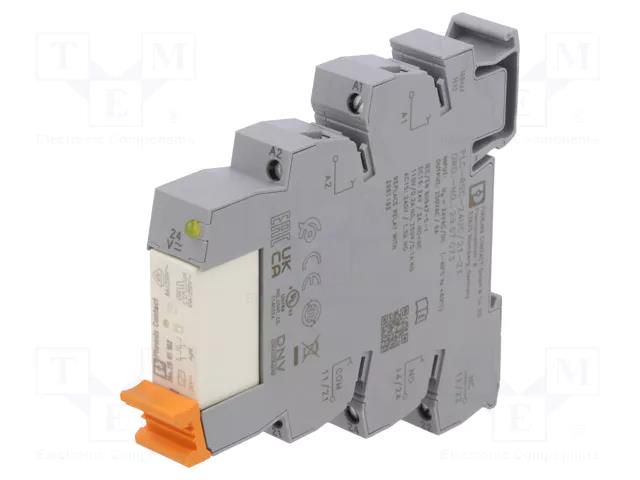

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-20 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 17 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
3,50
Product description
Relay: interface; DPDT; Ucoil: 24VAC,24VDC; 6A; 3A/250VAC; 2A/24VDC PHOENIX CONTACT
Useful information
Specifications
Supplier product description
Relay: interface; DPDT; Ucoil: 24VAC,24VDC; 6A; 3A/250VAC; 2A/24VDC
Useful information
Supplier parameters
Product code
PLC-RSC-24UC/21-21
AC contacts rating @R
3A / 250V AC
Body dimensions
14x80x94mm
Coil current
17.5mA
Coil voltage max.
33.6V DC
Coil voltage min.
20.6V AC
Contact material
AgNi
Contacts configuration
DPDT
DC contacts rating @R
2A / 24V DC
Electrical connection
screw terminals
IP rating
IP20
Manufacturer
PHOENIX CONTACT
Manufacturer series
PLC-RSC
Max. operating current
6A
Mechanical durability
300000000 cycles
Mounting
for DIN rail mounting
Operate time
8ms
Operating temperature
-40...60°C
Rated coil voltage
24V DC
Relay variant
interface
Switched voltage
max. 250V DC
Type of relay
interface
Turn-off time
10ms
Brand
PHOENIX CONTACT
Supplier's product code
PLC-RSC-24UC/21-21
Product ID
U-2359112
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
