Product description

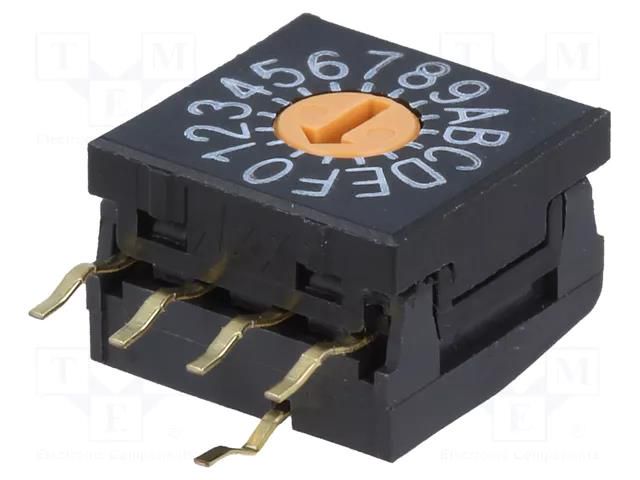

Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; FR01 NKK SWITCHES
Useful information
Specifications
SKU
U-1930327
Product code
FR01FR16H-S
Supplier product description
Encoding switch; HEX/BCD; Pos: 16; THT; Rcont max: 100mΩ; FR01
Useful information
Supplier parameters
Product code
FR01FR16H-S
Supplier's product code
FR01FR16H-S
Product ID
U-1930327
Body dimensions
10x10x4mm
Body material
polyamide
Contact material
copper alloy
Contact plating
gold-plated
DC contacts rating @R
0.1A / 5V DC
Electrical life
10000 cycles
Illumination
none
Kind of encoding switch
HEX/BCD
Kind of material
fiber glass reinforced
Leads
for PCB
Manufacturer
NKK SWITCHES
Manufacturer series
FR01
Max. contact resistance
:100mΩ
Mechanical durability
10000 cycles
Min. insulation resistance
1GΩ
Mounting
THT
Number of positions
16
Number of terminals
5
Operating temperature
-25...85°C
Poles number
1
Stable positions number
16
Switching method
BBM (non-shorting)
Terminal pitch
2.54mm
Type of switch
encoding switch
Brand
NKK SWITCHES
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
