Product description

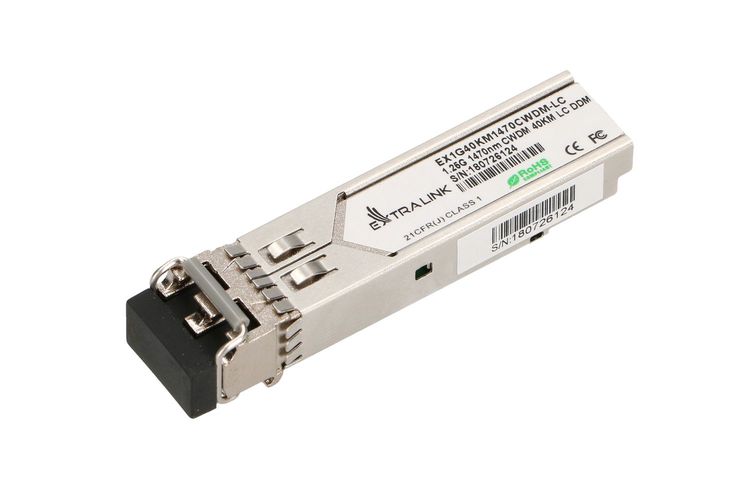

Extralink SFP 1.25G | SFP CWDM Module | 1,25Gbps, 1470nm, single mode, 40km, LC, DOM, EXTRALINK
Specifications
Supplier product description
Cost-effective 1.25G 1470NM SM 40KM LC DDM SFP CWDM fiber module
Extralink's fiber optic SFP module is designed for serial CWDM 1G Ethernet optical data transmission over distances up to 40 KM from SMF. The single-mode CWDM optical SFP modules meet the objectives of MSA standards SFF-8431 and SFF-8472, with 8 wavelengths available from 1470 nm to 1610 nm, in 20 nm increments. The SFP insert features low power consumption and data rates of up to 1.25 Gbps.
Special features
Special features
- Operational data rate up to 1.25 Gbp
- CWDM DFB laser transmitter
- Transmission up to 40 km on SMF
- Compliance with SFF-8472
- 3.3 V power supply
- Operating temperature range from 0°C to 70°C
- LC duplex connector interface
- Class 1 laser safety certification
- Low power consumption
| Output connector | LC |
| SFP module - port speed | 1,25 Gbps |
| Transmission distance | Over 20km |
| Coarse Wavelength Division Multiplexing (CWDM) | Yes |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Easy to install | Yes |
| Fiber type | SM (Single-Mode) |
| Housing material | Metal |
| HP segment | Business |
| Interface type | SFP |
| Manual | No |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 40000 |
| Multi-mode fiber (MMF) supported | No |
| Number of products included | 1 |
| Product colour | Stainless steel |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Type of SFP duplex | Wavy (WDM) |
| User guide | No |
| Wavelength | 1470 nm |
| Wavelength | 1470 |
| Wavelength-division multiplexing (WDM) | No |
Supplier parameters
Product code
EX.13575
Brand
EXTRALINK
Supplier's product code
EX.13575
Product ID
U-3954655
