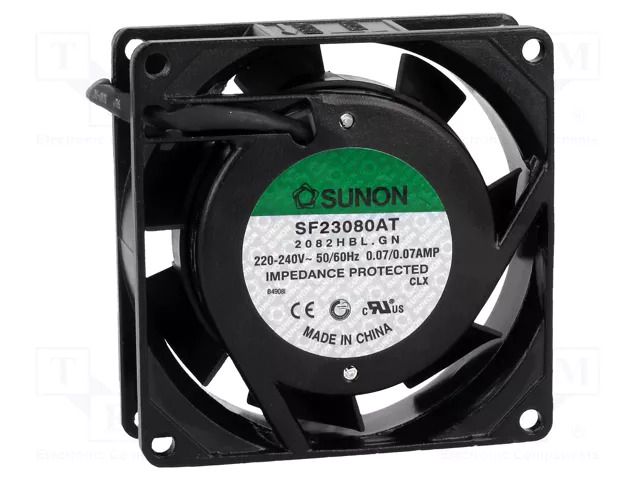

Fan: AC; axial; 230VAC; 80x80x25mm; 30.6m3/h(±5%); 30dBA; ball SUNON
Product Code: SF23080AT2082HB
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-05 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2482 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: AC; axial; 230VAC; 80x80x25mm; 30.6m3/h(±5%); 30dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: AC; axial; 230VAC; 80x80x25mm; 30.6m3/h(±5%); 30dBA; ball
Useful information
Supplier parameters
Product code
SF23080AT2082HB
Supplier's product code
SF23080AT2082HB
Product ID
U-322360
Current and power consumption tolerance
±15%
Current rating
70mA
Enclosure material
aluminium
Fan dimensions
80x80x25mm
Fan efficiency
30.6m<sup>3</sup>/h (±5%)
Flammability rating
UL94V-0
Frequency
50Hz
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.33m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
30dBA
Operating temperature
-10...70°C
Power consumption
14W
Rotational rate/speed
2450rpm
Static pressure
3.3mm H<sub>2</sub>O
Supply voltage
230V AC
Type of fan
AC
Wire size
24AWG
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
