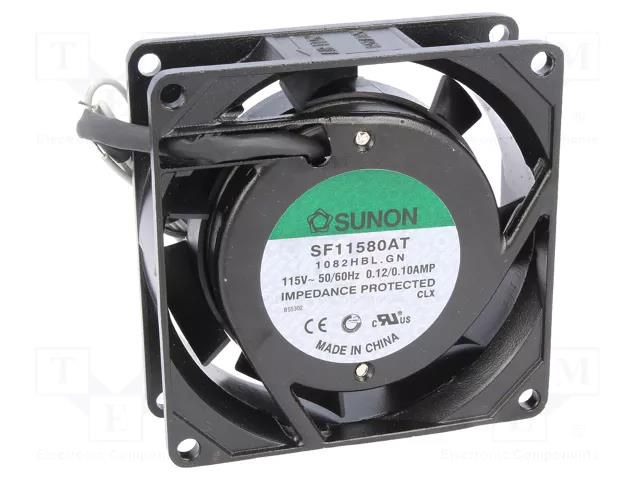

Fan: AC; axial; 115VAC; 80x80x25mm; 37m3/h(±5%); 34.5dBA; ball SUNON
Product Code: SF11580AT1082HB
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-04 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1088 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: AC; axial; 115VAC; 80x80x25mm; 37m3/h(±5%); 34.5dBA; ball SUNON
Useful information
Specifications
Supplier product description
Fan: AC; axial; 115VAC; 80x80x25mm; 37m3/h(±5%); 34.5dBA; ball
Useful information
Supplier parameters
Current and power consumption tolerance
±15%
Current rating
0.1A
Enclosure material
aluminium
Fan dimensions
80x80x25mm
Fan efficiency
37m<sup>3</sup>/h (±5%)
Flammability rating
UL94V-0
Frequency
60Hz
Impeller material
thermoplastic
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.33m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
34.5dBA
Operating temperature
-10...70°C
Power consumption
11W
Rotational rate/speed
2900rpm
Static pressure
4.82mm H<sub>2</sub>O
Supply voltage
115V AC
Type of fan
AC
Wire size
24AWG
Product code
SF11580AT1082HB
Brand
SUNON
Supplier's product code
SF11580AT1082HB
Product ID
U-322261
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
