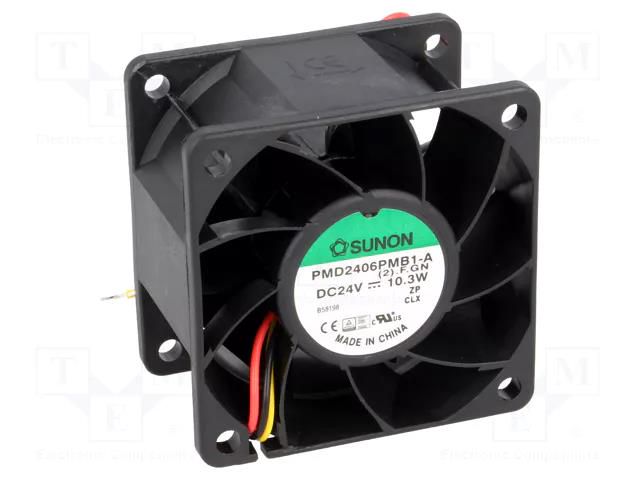

Fan: DC; axial; 24VDC; 60x60x38mm; 96m3/h; 56dBA; ball; Out: F type SUNON

Product Code: PMD2406PMB1AF
The photo is for illustration only. Please refer to the description for exact product specifications.
SUNON
Brand
More similar products

Sorry, we no longer have this product.

We recommend choosing from:

Other products in this category

Delivery terms

home delivery

Home delivery

Home delivery

After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.

Over €25.00

(Orders up to 1000 kgs)

For free

To €25.00

(Orders up to 1000 kgs)

€5.00

Shipping parcel

Delivery to DPD pickup locations

Delivery to DPD pickup locations

After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.

3,50

Product description

SUNON
Fan: DC; axial; 24VDC; 60x60x38mm; 96m3/h; 56dBA; ball; Out: F type SUNON

Useful information


Specifications

SKU
U-291747
Brand
Product code
PMD2406PMB1AF

Supplier product description

Fan: DC; axial; 24VDC; 60x60x38mm; 96m3/h; 56dBA; ball; Out: F type

Useful information

Supplier parameters

Product code
PMD2406PMB1AF
Brand
SUNON
Supplier's product code
PMD2406PMB1AF
Product ID
U-291747
Additional functions
Autorestart
Current and power consumption tolerance
±15%
Current rating
0.43A
Enclosure material
thermoplastic
Fan dimensions
60x60x38mm
Fan efficiency
96m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Lead length
0.3m
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
56dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
10.3W
Rotational rate/speed
8000 (±10%)rpm
Signal output
F type
Static pressure
23.36mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
24AWG
