Fan: DC; axial; 12VDC; 45x45x10mm; 13.93m3/h; 29.3dBA; Vapo; 26AWG SUNON
Product Code: MF45101V2-A99

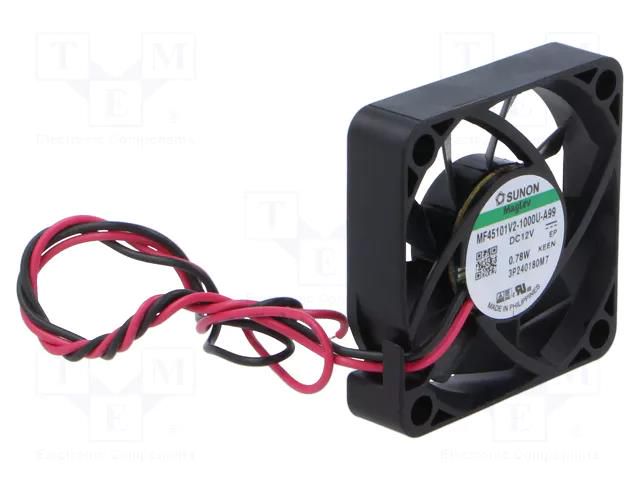

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-04 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 1116 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: DC; axial; 12VDC; 45x45x10mm; 13.93m3/h; 29.3dBA; Vapo; 26AWG SUNON
Specifications
Supplier product description
Fan: DC; axial; 12VDC; 45x45x10mm; 13.93m3/h; 29.3dBA; Vapo; 26AWG
Supplier parameters
Product code
MF45101V2-A99
Brand
SUNON
Supplier's product code
MF45101V2-A99
Product ID
U-3032643
Additional functions
autorestart
Current rating
62mA
Enclosure material
thermoplastic
Fan dimensions
45x45x10mm
Fan efficiency
13.93m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
29.3dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V DC
Power consumption
0.75W
Rotational rate/speed
5000 (±15%)rpm
Static pressure
2.29mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
