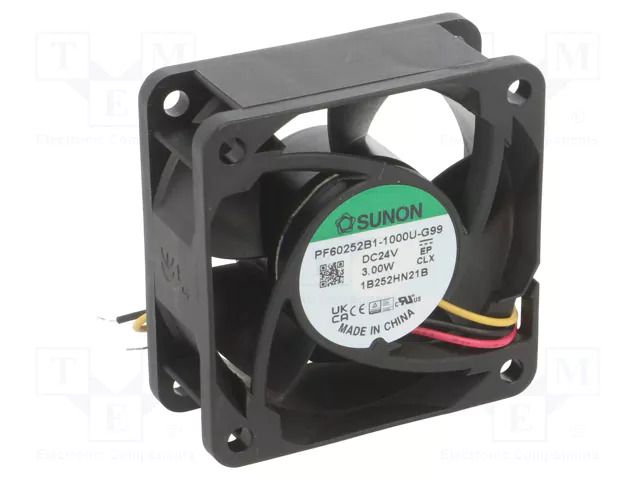

Fan: DC; axial; 24VDC; 60x60x25mm; 62m3/h; 41.7dBA; ball; Out: F type SUNON
Product Code: PF60252B1-G99
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: DC; axial; 24VDC; 60x60x25mm; 62m3/h; 41.7dBA; ball; Out: F type SUNON
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 60x60x25mm; 62m3/h; 41.7dBA; ball; Out: F type
Supplier parameters
Product code
PF60252B1-G99
Brand
SUNON
Supplier's product code
PF60252B1-G99
Product ID
U-4371368
Additional functions
autorestart
Enclosure material
thermoplastic
Fan dimensions
60x60x25mm
Fan efficiency
62m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
leads x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
41.7dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V DC
Power consumption
2.57W
Rotational rate/speed
7500rpm
Signal output
F type
Supply voltage
24V DC
Type of fan
DC
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
