Fan: DC; axial; 24VDC; 80x80x25mm; 76.43m3/h; 36.1dBA; ball; 3600rpm SUNON
Product Code: EF80252BX-A99-A

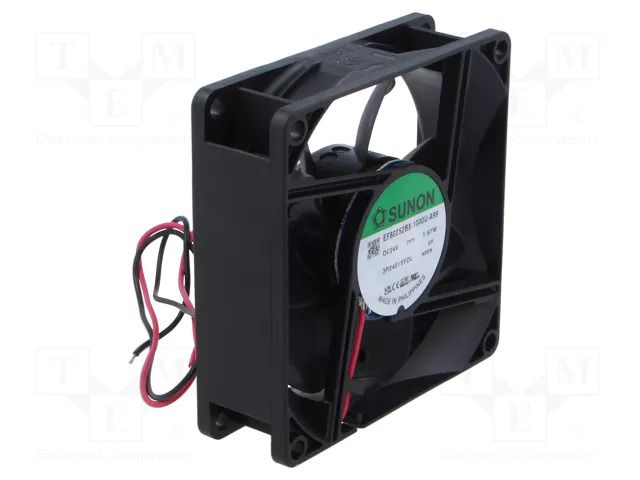

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-19 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
3,50
Product description
Fan: DC; axial; 24VDC; 80x80x25mm; 76.43m3/h; 36.1dBA; ball; 3600rpm SUNON
Specifications
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 76.43m3/h; 36.1dBA; ball; 3600rpm
Supplier parameters
Product code
EF80252BX-A99-A
Product ID
U-3133559
Additional functions
Autorestart
Current rating
71mA
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
76.43m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
36.1dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V DC
Power consumption
1.71...1.97W
Rotational rate/speed
3600rpm
Supply voltage
24V DC
Type of fan
DC
Brand
SUNON
Supplier's product code
EF80252BX-A99-A
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
