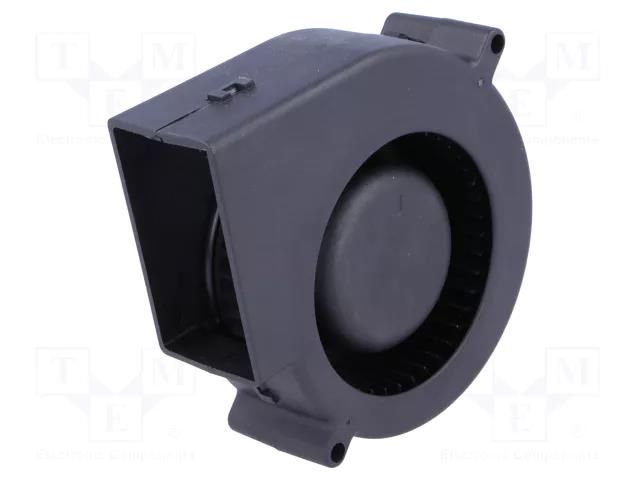

Fan: DC; blower; 12VDC; 97x94x33mm; 45.22m3/h; 53.1dBA; ball; 24AWG SUNON
Product Code: PMB1297PYB2-AY
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-08-19 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 224 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Fan: DC; blower; 12VDC; 97x94x33mm; 45.22m3/h; 53.1dBA; ball; 24AWG SUNON
Useful information
Specifications
Supplier product description
Fan: DC; blower; 12VDC; 97x94x33mm; 45.22m3/h; 53.1dBA; ball; 24AWG
Useful information
Supplier parameters
Supplier's product code
PMB1297PYB2-AY
Product ID
U-291687
Additional functions
autorestart
Current and power consumption tolerance
±15%
Current rating
560mA
Enclosure material
thermoplastic
Fan dimensions
97x94x33mm
Fan efficiency
45.22m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
E
Kind of Bearing
ball
Kind of fan
blower
Lead length
0.3m
Leads
leads x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
53.1dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
6.7W
Rotational rate/speed
3200 (±10%)rpm
Static pressure
16.5mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Product code
PMB1297PYB2-AY
Brand
SUNON
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
