Product description

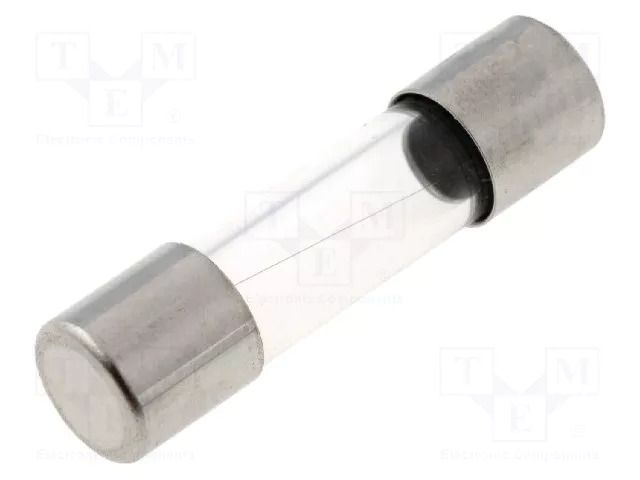

Fuse: fuse; 630mA; 250VAC; quick blow; cylindrical,glass; 5x20mm LITTELFUSE
Useful information
Specifications
Supplier product description
Fuse: fuse; 630mA; 250VAC; quick blow; cylindrical,glass; 5x20mm
Useful information
Supplier parameters
Product code
0217.630MXP
Breaking capacity
35A
Breaking characteristics
1.5I<sub>n</sub>: min 1h
Contact material
brass
Contact plating
nickel plated
Current rating
0.63A
Energy I2t
0.41A<sup>2</sup>s
Fuse characteristics
quick blow
Fuse size
5x20mm
Fuses application
standard applications
Kind of fuse
miniature
Kind of package
bag
Manufacturer
LITTELFUSE
Manufacturer series
217
Max voltage drop
0.65V
Operating temperature
-55...125°C
Power dissipation
1.6W
Rated voltage
250V AC
Soldering temperature
260°C / 5 s
Type of fuse
fuse
Brand
LITTELFUSE
Supplier's product code
0217.630MXP
Product ID
U-56372
