Product description

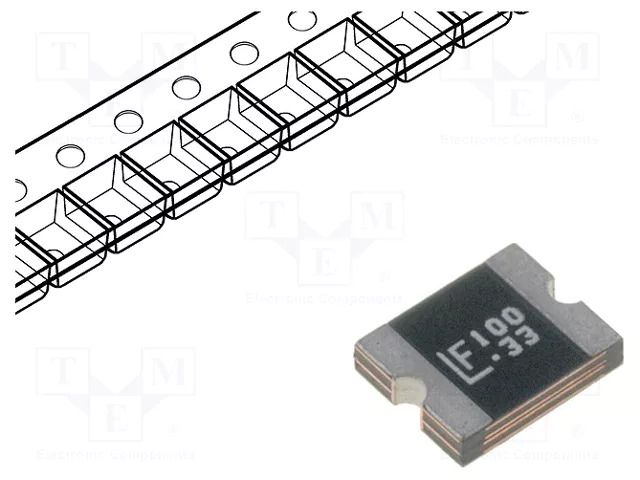

Fuse: PTC polymer; 1.1A; SMD; 2016L LITTELFUSE
Useful information
Specifications
Supplier product description
Fuse: PTC polymer; 1.1A; SMD; 2016L
Useful information
Supplier parameters
Product code
2016L100/33DR
Supplier's product code
2016L100/33DR
Product ID
U-75136
A dimension
5.44mm
B dimension
4.43mm
C dimension
0.75mm
Current rating
1.1A
D dimension
1.5mm
E dimension
0.65mm
Manufacturer
LITTELFUSE
Manufacturer series
2016L
Max resistance
400mΩ
Max surge current
40A
Max. voltage
33V DC
Min. resistance
100mΩ
Mounting
SMD
Operating temperature
-40...85°C
Power
1.4W
Switched current
2.2A
Type of fuse
PTC polymer
Brand
LITTELFUSE
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
