Product description

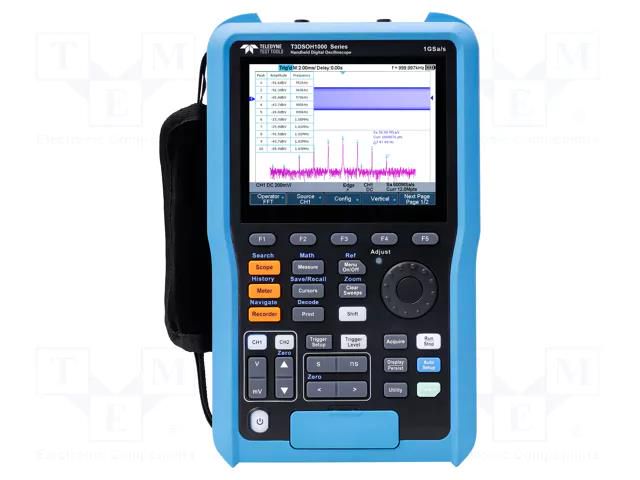

Handheld oscilloscope; 100MHz; 8bit; LCD TFT 5,6"; Ch: 2; 1Gsps TELEDYNE LECROY
Useful information
Specifications
Supplier product description
Handheld oscilloscope; 100MHz; 8bit; LCD TFT 5,6"; Ch: 2; 1Gsps
Useful information
Supplier parameters
Product code
LC-T3DSOH1102
Additional functions
multimeter
Band
100MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 9V 6900mAh x1
Dimensions
276x168x68mm
Display resolution
640x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/14pF
Input sensitivity
2mV/div...100V/div
Interface
USB
IP rating
IP51
Kind of display used
LCD TFT 5,6"
Manufacturer
TELEDYNE LECROY
Manufacturer series
T3DSOH1000
Measuring instrument features
protocols analyse: I2C, SPI, RS232/UART, CAN, LIN
Memory record length
12Mpts/ch
Number of channels
2
Power supply
rechargeable battery Li-Ion 9V 6900mAh x1
Producer guarantee (months)
36
Rise time
≤3.5ns
Sampling
1Gsps
Standard equipment
test leads
Time base
1n...100s/div
Type of oscilloscope
handheld oscilloscope
Trigger
rising-edge
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
Brand
TELEDYNE LECROY
Supplier's product code
LC-T3DSOH1102
Product ID
U-3920009
