Product description

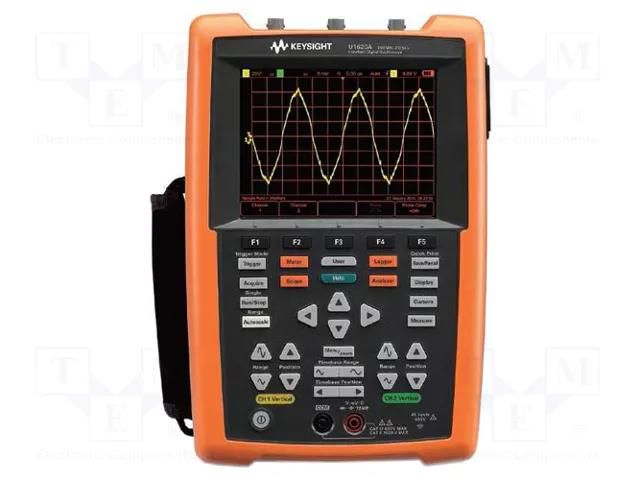

Handheld oscilloscope; 200MHz; 8bit; colour,LCD TFT 5,7"; Ch: 2 KEYSIGHT
Useful information
Specifications
Supplier product description
Handheld oscilloscope; 200MHz; 8bit; colour,LCD TFT 5,7"; Ch: 2
Useful information
Supplier parameters
Product code
U1620A
Brand
KEYSIGHT
Supplier's product code
U1620A
Product ID
U-366495
Additional functions
multimeter
Band
200MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 10,8V x1
Body dimensions
183x270x65mm
Connectors for the country
Europe
Display resolution
640x480
Information
Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Input coupling
AC, DC
Input impedance
1MΩ/22pF
Input sensitivity
2mV/div...50V/div
Interface
USB
Kind of display used
colour
Manufacturer
KEYSIGHT
Max. input voltage
300V
Measurement memory
10
Measuring instrument features
real time clock
Memory record length
2Mpts/ch
Number of channels
2
Power supply
rechargeable battery Li-Ion 10,8V x1
Related items
U1560A
Rise time
1.75ns
Sampling
2Gsps
Standard equipment
test leads
Supply voltage
100...240V AC
Time base
2n...50s/div
Type of oscilloscope
handheld oscilloscope
Trigger modes
automatic
Trigger source
CH1
True effective value measurement
True RMS
Vertical resolution
8bit
