Handheld oscilloscope; 60MHz; LCD TFT 5,7"; Ch: 2; 250Msps; ≤5.8ns UNI-T
Product Code: UTD1062C

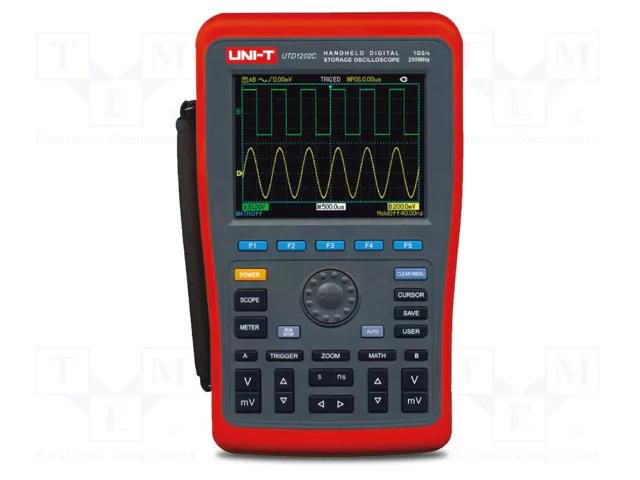

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-31 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Handheld oscilloscope; 60MHz; LCD TFT 5,7"; Ch: 2; 250Msps; ≤5.8ns UNI-T
Useful information
Specifications
Supplier product description
Handheld oscilloscope; 60MHz; LCD TFT 5,7"; Ch: 2; 250Msps; ≤5.8ns
Useful information
Supplier parameters
Product code
UTD1062C
Supplier's product code
UTD1062C
Product ID
U-3845685
AC current measuring accuracy
±(2% + 5 digit)
AC current measuring range
6A
AC voltage measuring accuracy
±(1.2% + 5 digit)
AC voltage measuring range
600V
Band
60MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 7,4V 4400mAh x1
Capacitance measuring accuracy
±(4%+ 5 digit)
Capacitance measuring range
600nF
DC current measuring accuracy
±(1.2% + 5 digit)
DC current measuring range
60mA
DC voltage measuring accuracy
±(1% + 5 digit)
DC voltage measuring range
600V
Dimensions
268x168x60mm
Display parameters
(5999)
Display resolution
320x240
Input sensitivity
5mV/div...50V/div
Interface
USB OTG
Kind of display used
LCD TFT 5,7"
Manufacturer
UNI-T
Measurement
AC voltage
Measuring instrument features
automatic measurement of many parameters
Memory record length
7.5kpts
Number of channels
2
Power supply
rechargeable battery Li-Ion 7,4V 4400mAh x1
Resistance measuring accuracy
±(1.2%+5 digit)
Resistance measuring range
600Ω
Rise time
≤5.8ns
Sampling
250Msps
Standard equipment
mains cable
Time base
5n...50s/div
Type of oscilloscope
handheld oscilloscope
Trigger
rising-edge
Brand
UNI-T
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
