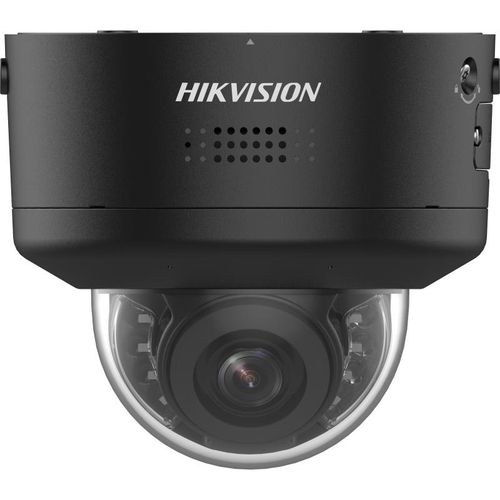

Hikvision Dome DS-2CD2787G2H-LIPTRZS2U/SL F2.8-12 (black, 8 MP, IR, LED up to 40m, ColorVu, DarkFighter)
Product Code: KIP2787G2HPTRZF2812J
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-03 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
3,50
Product description
Hikvision Dome DS-2CD2787G2H-LIPTRZS2U/SL F2.8-12 (black, 8 MP, IR, LED up to 40m, ColorVu, DarkFighter)
Specifications
Supplier product description
- Type: IP Camera
- Model: DS-2CD2787G2H-LIPTRZS2U/SL
- Color: Black
- Lens: F2.8-12
- Body: Dome
- Brand: Hikvision
- PTRZ
- Resolution: 8 MP
- Illumination: Hybrid (IR + LED)
- Illumination Range: Up to 40 m
- Technology: ColorVu
- Audio and Microphone: Yes
- Alarm: Yes
- Viewing Angle: 112.3°-41.2°
- Power Supply: PoE
- Noise Reduction: 3D DNR
- Analytics: VCA
- Approval
- EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- ProtectionIK10: IEC 62262:2002,IP66: IEC 60529-2013
- SafetyCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1
- Audio
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Camera
- Angle AdjustmentRemote adjustment (Max. 1,000 cycles)Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°
- Day & NightIR cut filter
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution3840 × 2160
- Min. IlluminationColor: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
- Shutter Time1/3 s to 1/100,000 s
- DORI
- DORIWide: D: 89 m, O: 35 m, R: 18 m, I: 9 mTele: D: 220 m, O: 87 m, R: 44 m, I: 22 m
- Deep Learning Function
- Face CaptureYes
- Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,strobe light flashing
- Smart EventScene change detection
- General
- DimensionØ155 mm × 140.4 mm (Ø6.10" × 5.53")
- Flashing LightWhite Light
- General FunctionHeartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- MaterialMetal
- Package Dimension206 mm × 206 mm × 230 mm (8.1" × 8.1" × 9.1")
- Power 12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block,PoE: IEEE 802.3at, Class 4, max. 18 W
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- WeightApprox. 820 g (1.8 lb.)
- With Package WeightApprox. 1200 g (2.6 lb.)
- Illuminator
- IR Wavelength850 nm
- Smart Supplement LightYes
- Supplement Light RangeUp to 40 m
- Supplement Light TypeIR,White Light
- Image
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)130 dB
- Interface
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- AudioBuilt-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Built-in Speaker1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset KeyYes
- Lens
- ApertureMax. F1.2
- Depth of Field1 m to ∞
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3°
- Iris TypeFixed
- Lens MountIntegrated
- Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
- Network
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users3 user levels: administrator, operator, and user
- Web BrowserPlug-in required live view: IE 11,Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Video
- Bit Rate ControlCBR,VBR
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 16 Mbps
- Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
