KNIPEX 97 49 04 Crimping die for non-insulated, open plug type connectors (2.8 + 4.8 mm width)
Product Code: 97 49 04

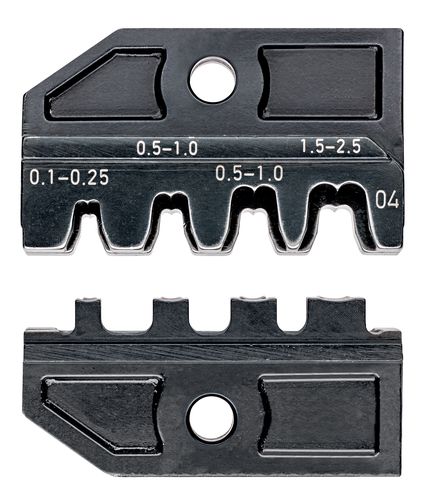

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
KNIPEX 97 49 04 Crimping die for non-insulated, open plug type connectors (2.8 + 4.8 mm width)
Useful information
Specifications
Supplier product description
- Application: non-insulated open plug type connectors (plug width 2.8 + 4.8 mm) 0.1 - 2.5 mm²
- Application: for non-insulated, open lug connectors> Crimping die 1: 0.1 - 0.25 mm² - plug width 2.8 mm> Crimping die 2: 0.5 - 1.0 mm² - plug width 2.8 mm> Crimping die 3: 0.5 - 1.0 mm² - plug width 4.8 mm> Crimping die 4: 1.5 - 2.5 mm² - plug width 4.8 mm
- The additionally available locator 97 49 94 makes it easier to guide the contact during the crimping process
- Not suitable for special contact series such as Tyco Electronics, Molex, JST etc.
Useful information
Supplier parameters
Product code
97 49 04
Brand
KNIPEX
Supplier's product code
97 49 04
Product ID
U-1718877
Height
10 mm
Length
80 mm
Product Group
Crimping Dies, for manual and electromechanical KNIPEX Crimp System Pliers Art. No.: 97 43 XX
Weight
42 g
Width
50 mm
