Laser Power Meter 0uW~39.99mW; 400nm~1100nm; Optional laser wavelength: 520nm, 633nm, 650nm, 780nm;
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Order processing
Order processing
Quantity in shop
 Not available | Lemona Estonia warehouse |
| 1 pcs | Lemona Vilnius warehouse 1 |
| Not available | Lemona Vilnius warehouse 2 |
| Not available | Lemona Kaunas warehouse |
| Not available | Lemona Klaipėda warehouse |
| Not available | Lemona Šiauliai warehouse |
| Not available | Lemona central warehouse |
Home delivery
Home delivery
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
3,50
Product description

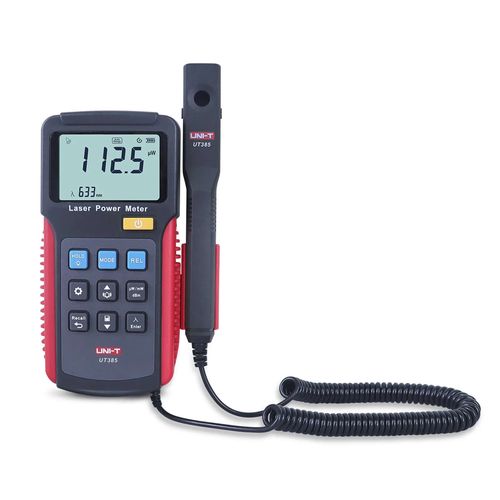

UT385 Laser Power Meter
UT385 laser power meter is used to measure the energy output of laser beams for testing or laser system applications. It uses detection sensor to determine the intensity of a laser beam’s energy output.
Features of UT385 Laser Power Meter
Certificates: CE, RoHS
● Precise laser sensor
● Split design with retractable spring wire
● LCD screen for clear readings
● Data storage function
● Selectable and customizable wavelengths
● Threshold alarm function
● Low power consumption
Specifications of UT385 Laser Power Meter
|
Specifications |
Range |
|
Certificates |
CE, RoHS |
|
Measurement range |
0uW~39.99mW |
|
Measurement accuracy |
0uW~10uW: ±(5%+0.3); 10uW~39.9mW: ±5% |
|
Laser wavelength range |
400nm~1100nm |
|
Laser wavelength preset options |
520nm, 633nm, 650nm, 780nm |
|
LCD display |
4-digit LCD display |
|
Sampling rate |
0.5s |
|
Data storage |
199 sets |
|
Battery level indication |
√ |
|
LCD backlight |
√ |
|
Auto power off |
√ |
|
Operating temperature |
0~40°C |
|
Operating humidity |
80%RH (no condensation) |
|
Storage temperature |
-10°C~50°C |
|
General Characteristics |
|
|
Power |
9V battery (6F22) |
|
Display |
57mm x 37mm |
|
Product net weight |
319g |
|
Product size |
198mm x 104mm x 35mm |
|
Standard accessories |
Battery, USB cable, documents download guide, English manual |
|
Standard individual packing |
Gift box, tool box |
|
Standard quantity per carton |
1pcs |
|
Standard carton measurement |
305mm x 240mm x 85mm |
|
Standard carton gross weight |
1.24kg |
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T Laser Power Meter: Precise Measurement for Optical Networks
The UNI-T Laser Power Meter is a professional-grade instrument categorized under LAN and Telephone Networks Testers. This essential tool accurately measures laser power, making it indispensable for various applications in optical network testing and maintenance.
Key Features and Specifications
- Measurement Range: 0µW~39.99mW
- Wavelength Range: 400nm~1100nm
- Optional Laser Wavelengths: 520nm, 633nm, 650nm, 780nm
This laser power meter provides precise and reliable measurements within its specified range, ensuring accurate assessment of optical power levels. The selection of optional wavelengths caters to a wide range of applications.
Applications
This versatile instrument finds use in various scenarios, including:
- Testing and maintenance of fiber optic networks
- Quality control in laser-related manufacturing
- Research and development in optical technologies
- Calibration of other optical instruments
Why Choose the UNI-T Laser Power Meter?
The UNI-T brand is synonymous with quality and reliability. This laser power meter offers:
- Accuracy: Ensuring precise measurements for critical applications.
- Versatility: Suitable for a wide range of wavelengths and power levels.
- Durability: Built to withstand the rigors of professional use.
- Ease of Use: Designed for straightforward operation and data interpretation.
This UNI-T Laser Power Meter, also known as an optical power meter or laser power detector, is a valuable asset for anyone working with optical networks or laser systems requiring precise power measurement. Its accuracy, versatility, and reliability make it a worthwhile investment for professionals and researchers alike.
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Type | Laser Power Meter |
| Measurement Range | 0µW~39.99mW |
| Wavelength Range | 400nm~1100nm |
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
