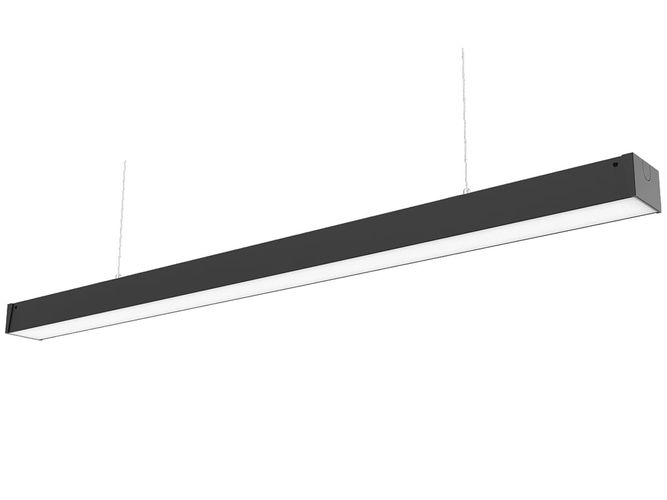

LED line PRIME FUSION linear lamp 60W 4000K 7800lm 0-10V LR40° black
Product Code: 479679
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-09-03 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
LED line PRIME FUSION linear lamp 60W 4000K 7800lm 0-10V LR40° black
Specifications
Supplier product description
The FUSION series of luminaires comes in the power range from 20 to 60W, color temperature 4000K. The efficiency of the luminaires is 130 lm/W.The length of the luminaire varies depending on its wattage. FUSION luminaires offer various angles of light distribution, which can be adjusted with lenses, allowing practical adaptation to any lighting arrangement. An optional UGR shield can be used to eliminate the "glare" effect.One of the biggest advantages of the FUSION series is that they can be practically tool-free connected to each other using built-in connectors, which are standard equipment. This makes it possible to achieve a uniform, continuous line of light. The use of the optional angle connector makes it possible to build a variety of lighting systems of any shape, creating original, continuous lines of light.Adjustment of the angle of incidence of light is carried out by lenses, which allow to adjust the angle of light distribution depending on the desired effect of the user.
Supplier parameters
Product code
479679
Ambient temperature suitable for operation
`-20 ÷ 45
Angle for useful luminous flux (EPREL)
Sphere 360 degrees
Beam angle in degrees (EPREL)
120
Chromaticity coordinates x i y (EPREL)
0.38|0.377
Colour consistency in McAdam ellipses
≤6
Colour of the light
White
Colour rendering index Ra
80
Colour-tuneable light source (EPREL)
No
Connected light source (EPREL)
No
Contain icon
ReplByProf2+ReplByProf3
Correlated colour temperature
4000
Current
0,274
Dimmable function
Yes
Energy efficiency class 2019/2015
C
EPREL ID
1587243
Form of the product (EPREL)
Source Out
Frequency of the supply voltage
50/60Hz
GPC classification
10005639 - Lighting - permanently mounted
GS1 unit
szt
Height
52
IEC protection class
I
IK protection rating
08
IP protection rating
20
Is the product equipped with an integrated light source? (EPREL)
Yes
Lamp's warm-up time to 60%
1
Length
1444
Lifetime L70B50
50000
Luminous efficacy
130
Luminous flux
7800
Mains or non- mains light source (EPREL)
NMLS
Maximum linkable length
60
Mounting type
mixed
Net content of the product
1
Non-directional or directional light source (EPREL)
NDLS
Number of elements in the link
40
On-mode power Pon (EPREL)
48
Power Factor
0,9
Sling length
200
Status
Active (on sale)
Supply voltage range and voltage type
220-240VAC
Survival factor
0.9
The lumen maintenance factor
96
Total link power
2400
Total luminous flux (EPREL)
8640
Useful luminous flux Φuse (EPREL)
8640
Warranty (years)
5
Wattage
60
Width
70
Brand
LED line PRIME
Supplier's product code
479679
Product ID
U-4061501
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
