Product description

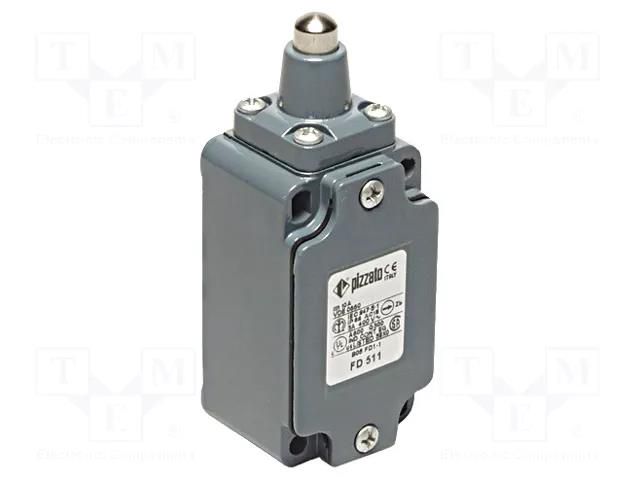

Limit switch; pin plunger Ø10mm; NO + NC; 10A; max.500VAC; PG13,5 PIZZATO ELETTRICA
Useful information
Specifications
Supplier product description
Limit switch; pin plunger Ø10mm; NO + NC; 10A; max.500VAC; PG13,5
Useful information
Supplier parameters
Product code
FD511
Brand
PIZZATO ELETTRICA
Supplier's product code
FD511
Product ID
U-186769
AC contacts rating @R
6A / 250V AC
Body dimensions
60x40x30mm
Body material
metal
Connection
PG13,5
Contact current max.
10A
DC contacts rating @R
6A / 24V DC
IP rating
IP67
Kind of actuator
pin plunger Ø10mm
Manufacturer
PIZZATO ELETTRICA
Mechanical durability
20000000 cycles
Mounting holes pitch
30/60mm
Number of mounting holes
4
Operating temperature
-25...80°C
Output configuration
NO + NC
Switched voltage
max. 250V DC
Switches features
snap action contacts
Type of sensor
limit switch
