Product description

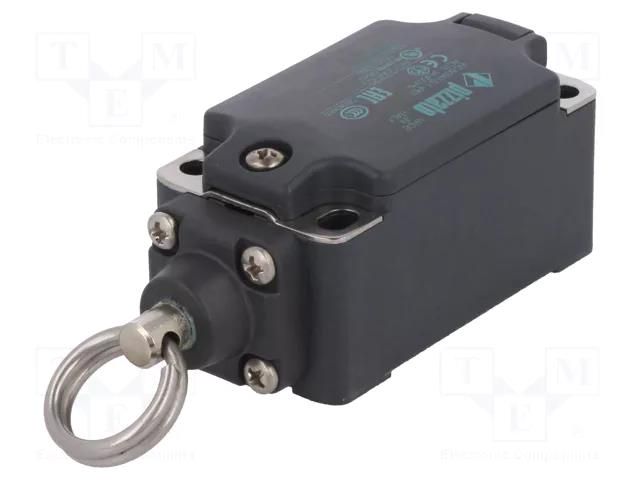

Limit switch; ring; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5 PIZZATO ELETTRICA
Useful information
Specifications
Supplier product description
Limit switch; ring; NO + NC; 10A; max.500VAC; max.250VDC; PG13,5
Useful information
Supplier parameters
Product code
FP576
Supplier's product code
FP576
Product ID
U-191460
AC contacts rating @R
6A / 250V AC
Body dimensions
60x40x39mm
Body material
plastic
Connection
PG13,5
Contact current max.
10A
DC contacts rating @R
6A / 24V DC
IP rating
IP67
Kind of actuator
ring
Manufacturer
PIZZATO ELETTRICA
Mechanical durability
20000000 cycles
Mounting holes pitch
30/60mm
Number of mounting holes
4
Operating temperature
-25...80°C
Output configuration
NO + NC
Switched voltage
max. 250V DC
Switches features
snap action contacts
Type of sensor
limit switch
Brand
PIZZATO ELETTRICA
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
