Product description

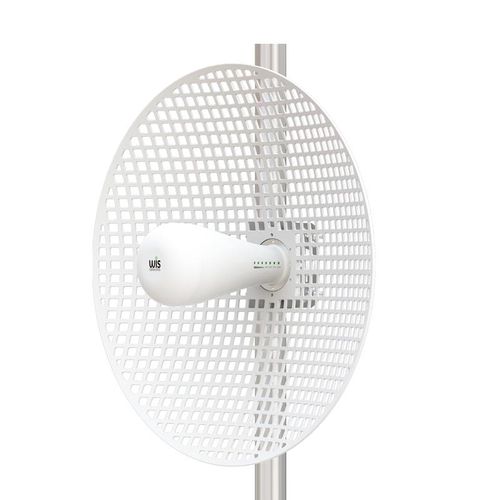

LTE antenna 5G WIS WIS-ODU20-5G
Specifications
Supplier product description
- 5G LTE antenna
- Power: up to 22dBi
- 4xMIMO
- Frequency band: 698-3800MHz
- 2.5Gbps LAN
- NSA/SA sub-6 band - max. 3.4 Gb/s / 900 Mb/s
- General
- ChipsetQualcomm Snapdragon X62 5G
- Applicable Network5G/4G
- Standard3GPP Release 16
- Network technology5G Sub-6 GHz and 4G LTE Cat 19，4x4 MIMO
- 5G Frequency BandsNSA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/71/ 75/ 76/ 77/ 78 SA: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/71/ 75/ 76/ 77/ 78
- 4G&3G Frequency BandsLTE-FDD:B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71 LTE-TDD: B38/ 40/ 41/ 42/ 43 WCDMA: B1/ 5/ 8
- Data speeds5G SA Sub-6 : DL 2.4Gbps; UL 900Mbps 5G NSA Sub-6: DL 3.4Gbps; UL 550Mbps LTE: DL 1.6Gbps; UL 200Mbps
- Antenna Frequency1710-4200MHz
- LTE/5G Antenna GainMimo Dish Antenna Max 22dBi
- Led Indicator1*PWR,1*SYS,1*ETH,1*Sim ,3*Signal strength
- Ports1*SIM card slot, 1*2.5 Gigabit ports, 1* Reset,Type C
- SoftwareAPN, AT Command, PCI Lock, Bands Lock, SMS, IMEI Change
- Power Supply24-48V Passive PoE
- Dimensions60cm
- Weight3.5kg
- Colorwhite
- EnvironmentOperating temperature:-20℃ ~ 40℃ Storage temperature: -20℃ ~ 60℃ Humidity: 5% ~ 95% (non-condensing)
Supplier parameters
Product code
RLANBRWISODU205G
Category
Ante
Supplier's product code
RLANBRWISODU205G
Product ID
U-3126062
Brand
WIS
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
