Product description

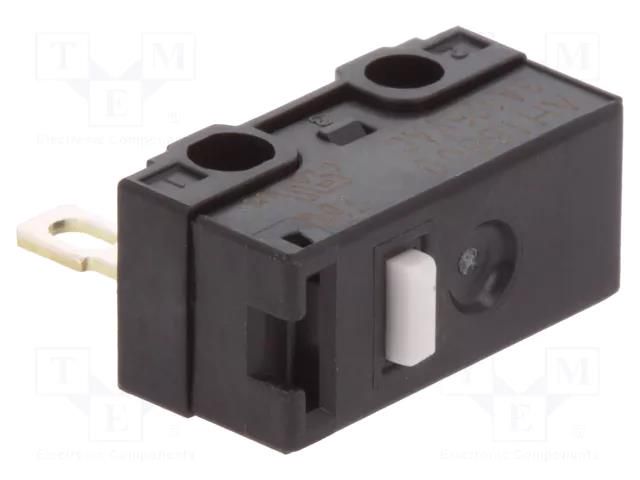

Microswitch SNAP ACTION; 3A/125VAC; 2A/30VDC; without lever PANASONIC
Useful information
Specifications
Supplier product description
Microswitch SNAP ACTION; 3A/125VAC; 2A/30VDC; without lever
Useful information
Supplier parameters
Product code
AH16609AT
AC contacts rating @R
3A / 125V AC
Body dimensions
12.8x6x7mm
Contact material
AgNi
Contacts configuration
SPDT
DC contacts rating @R
2A / 30V DC
Electrical life
30000 cycles
Leads
for soldering
Manufacturer
PANASONIC
Manufacturer series
AH1
Max. contact resistance
:30mΩ
Mechanical durability
500000 cycles
Min. insulation resistance
0.1GΩ
Number of positions
2
Operating Force
1.47N
Operating temperature
-25...85°C
Stable positions number
1
Switches features
without lever
Switching method
ON-(ON)
Type of switch
microswitch SNAP ACTION
Brand
PANASONIC
Supplier's product code
AH16609AT
Product ID
U-107489
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
