Product description

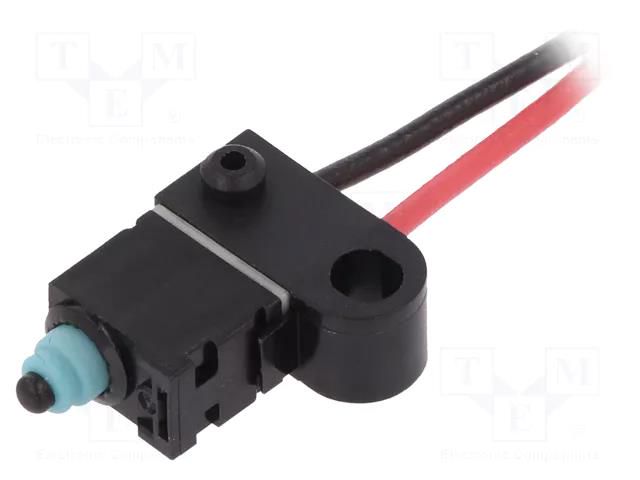

Microswitch SNAP ACTION; 0.05A/15VDC; without lever; SPST-NC PANASONIC
Useful information
Specifications
Supplier product description
Microswitch SNAP ACTION; 0.05A/15VDC; without lever; SPST-NC
Useful information
Supplier parameters
Product code
ASQM11620-A
Body dimensions
13.3x5.4x10.1mm
Contact material
AgNi
Contacts configuration
SPST-NC
DC contacts rating @R
0.05A / 15V DC
Electrical life
500000 cycles
IP rating
IP67
Leads
cables
Manufacturer
PANASONIC
Manufacturer series
ASQM
Max. contact resistance
:1Ω
Mechanical durability
1000000 cycles
Min. insulation resistance
0.1GΩ
Number of positions
2
Operating Force
1.2N
Operating temperature
-40...85°C
Stable positions number
1
Switches features
without lever
Switching method
ON-(OFF)
Type of switch
microswitch SNAP ACTION
Brand
PANASONIC
Supplier's product code
ASQM11620-A
Product ID
U-116826
