Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A; 16A/250VAC; OMIH TE Connectivity
Product Code: OMIH-SH-105L.394

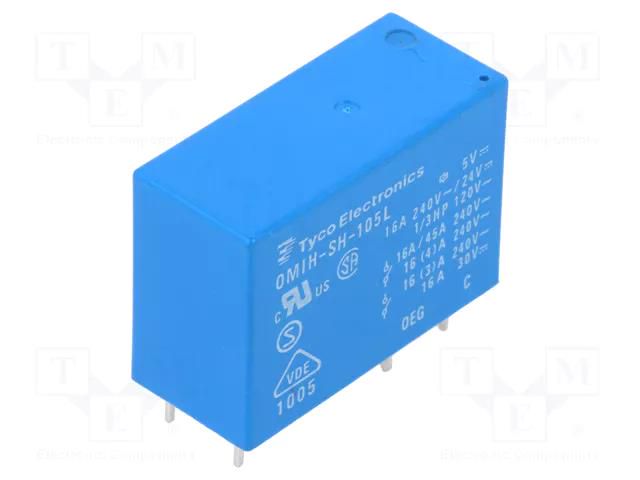

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A; 16A/250VAC; OMIH TE Connectivity
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A; 16A/250VAC; OMIH
Supplier parameters
Product code
OMIH-SH-105L.394
Brand
TE Connectivity
Supplier's product code
OMIH-SH-105L.394
Product ID
U-280303
AC contacts rating @R
16A / 250V AC
Body dimensions
29.2x12.8x20.6mm
Coil power consumption
540mW
Coil resistance
48.5Ω
Coil voltage min.
3.75V DC
Contact current max.
16A
Contact material
AgSnO<sub>2</sub>
Contacts configuration
SPST-NO
Manufacturer
TE Connectivity
Manufacturer series
OMIH
Mounting
PCB
Operating temperature
-30...70°C
Rated coil voltage
5V DC
Relay variant
miniature
Switched voltage
max. 30V DC
Terminal pitch
3.5mm
Type of relay
electromagnetic
