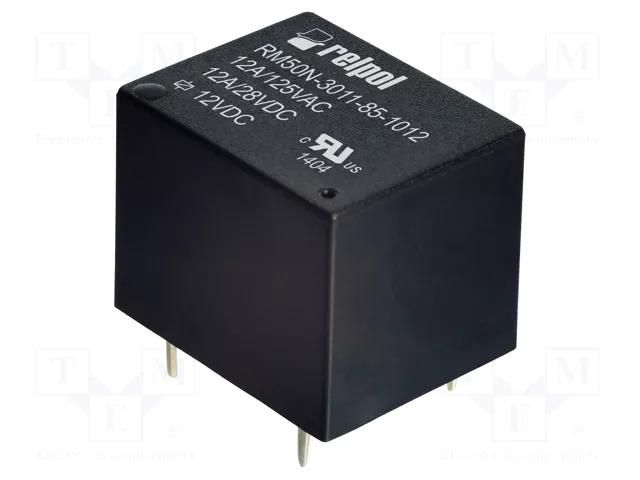

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A; 12A/125VAC; RM50N RELPOL
Product Code: RM50N3011851012
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-05 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2706 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A; 12A/125VAC; RM50N RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPDT; Ucoil: 12VDC; 12A; 12A/125VAC; RM50N
Useful information
Supplier parameters
Product code
RM50N3011851012
AC contacts rating @R
12A / 125V AC
Body dimensions
19x15.6x15.3mm
Coil power consumption
360mW
Coil resistance
400Ω
Coil voltage max.
15.6V DC
Coil voltage min.
9V DC
Contact current max.
12A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPDT
DC contacts rating @R
12A / 28V DC
IP rating
IP64
Manufacturer
RELPOL
Manufacturer series
RM50N
Mounting
PCB
OEM number
2614648
Operate time
10ms
Operating temperature
-30...55°C
Rated coil voltage
12V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 28V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RM50N3011851012
Product ID
U-312021
