Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 12A; 12A/125VAC RELPOL
Product Code: RM50N3021851024

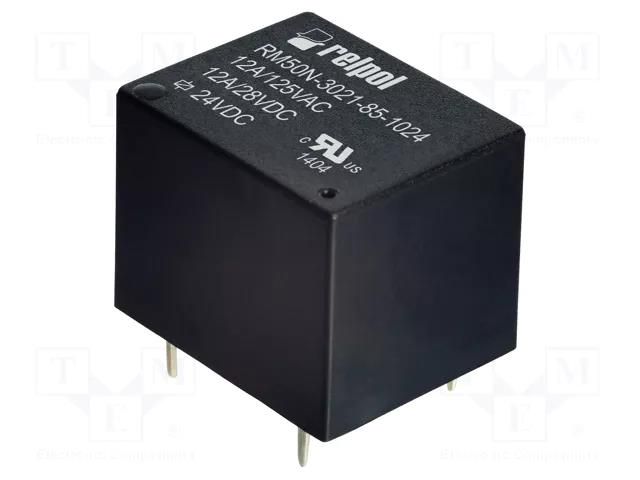

The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-06-09 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 687 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
0,00 - 3,50 €
Product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 12A; 12A/125VAC RELPOL
Useful information
Specifications
Supplier product description
Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 12A; 12A/125VAC
Useful information
Supplier parameters
Product code
RM50N3021851024
AC contacts rating @R
12A / 125V AC
Body dimensions
19x15.6x15.3mm
Coil power consumption
360mW
Coil resistance
1.6kΩ
Coil voltage max.
31.2V DC
Coil voltage min.
18V DC
Contact current max.
12A
Contact material
AgSnO<sub>2</sub>
Contact resistance
100mΩ
Contacts configuration
SPST-NO
DC contacts rating @R
12A / 28V DC
IP rating
IP64
Manufacturer
RELPOL
Manufacturer series
RM50N
Mounting
PCB
OEM number
2614660
Operate time
10ms
Operating temperature
-30...55°C
Rated coil voltage
24V DC
Relay variant
miniature
Release time
5ms
Switched voltage
max. 28V DC
Terminal pitch
2mm
Type of relay
electromagnetic
Brand
RELPOL
Supplier's product code
RM50N3021851024
Product ID
U-312025
