Product description

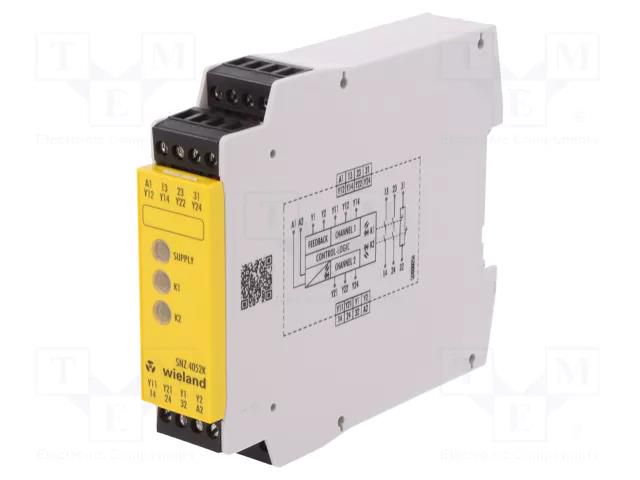

Module: safety relay; Usup: 24VAC; 24VDC; Contacts: NC + NO x2 WIELAND
Useful information
Specifications
Supplier product description
Module: safety relay; Usup: 24VAC; 24VDC; Contacts: NC + NO x2
Useful information
Supplier parameters
Product code
R1.188.0530.1
Brand
WIELAND
Supplier's product code
R1.188.0530.1
Product ID
U-301228
Application
two-hand applications
Body dimensions
22.5x96.5x114mm
Contacts configuration
NC + NO x2
Contacts electrical parameters
230V AC / 3A
Electrical connection
screw terminals
Input 1 properties
2 channels with between-channels short circuits detection
IP rating
IP20 at terminal side
Manufacturer
WIELAND
Mounting
for DIN rail mounting
Operating temperature
-25...55°C
Safety category
4
Safety switches features
LED status indicator
Supply voltage
24V DC
Type of module
safety relay
