Product description

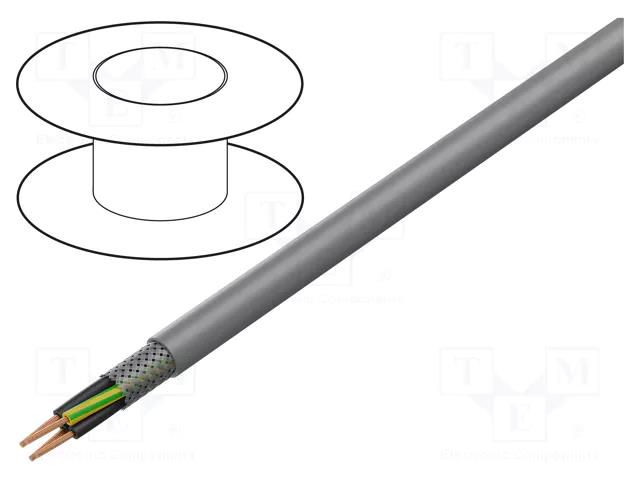

Wire; JZ; JZ-500 HMH-C; 3G0.75mm2; shielded,tinned copper braid HELU
Useful information
Specifications
SKU
U-1921736
Product code
JZ500-HMHC-3G0.75
Supplier product description
Wire; JZ; JZ-500 HMH-C; 3G0.75mm2; shielded,tinned copper braid
Useful information
Supplier parameters
Product code
JZ500-HMHC-3G0.75
Cable application
assembly line tools
Cable external diameter
6.3mm
Cable structure
3G0.75mm<sup>2</sup>
Core marking
black, numbered + ground wire
Core section
0.75mm<sup>2</sup>
Core structure
stranded
CPR standard
D<sub>ca</sub>
Earth core
yellow-green
Flexibility class
5
Insulation colour
grey
Kind of cable
JZ
Kind of core
Cu
Kind of material
flame retardant
Manufacturer
HELU
Manufacturer series
JZ-500 HMH-C
Number of cores
3
Operating temperature
-40...70°C
Rated voltage
0.3kV
Resistance to
most of oils
Shield structure
tinned copper braid
Type of wire
control cable
Wire insulation material
LSZH
Supplier's product code
JZ500-HMHC-3G0.75
Product ID
U-1921736
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
