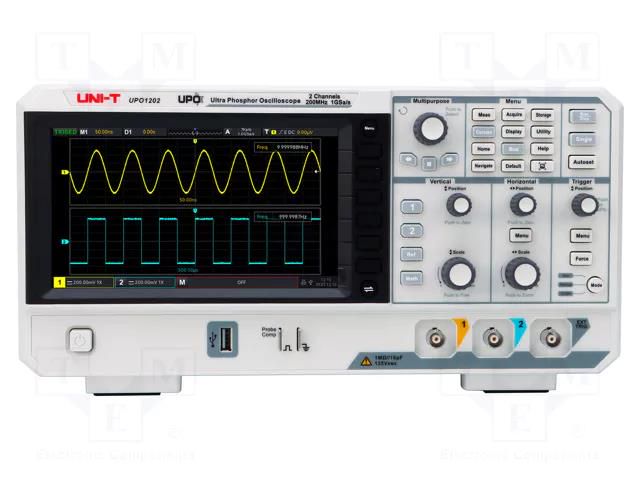

Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 56Mpts; LCD TFT 8" UNI-T
Product Code: UPO1202
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-08-27 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 5 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 56Mpts; LCD TFT 8" UNI-T
Useful information
Specifications
Supplier product description
Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 56Mpts; LCD TFT 8"
Useful information
Supplier parameters
Product code
UPO1202
Brand
UNI-T
Supplier's product code
UPO1202
Product ID
U-4205918
Band
200MHz
Dimensions
336x164x105mm
Display resolution
800x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/16pF
Input sensitivity
500µV/div...20V/div
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
UNI-T
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
56Mpts
Number of channels
2
Related items
UT-P20
Rise time
≤1.8ns
Sampling
1Gsps
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
1n...1ks/div
Type of oscilloscope
digital
Trigger
video signal
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
