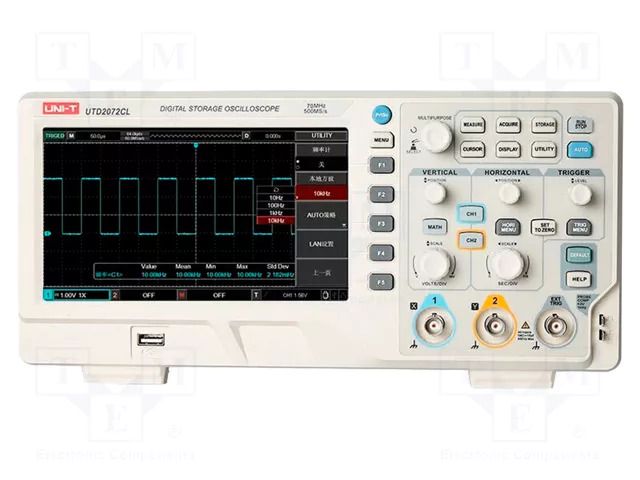

Oscilloscope: digital; Ch: 2; 70MHz; 500Msps; 64kpts; 2n÷50s/div UNI-T
Product Code: UTD2072CL
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Oscilloscope: digital; Ch: 2; 70MHz; 500Msps; 64kpts; 2n÷50s/div UNI-T
Useful information
Specifications
Supplier product description
Oscilloscope: digital; Ch: 2; 70MHz; 500Msps; 64kpts; 2n÷50s/div
Useful information
Supplier parameters
Product code
UTD2072CL
Supplier's product code
UTD2072CL
Product ID
U-3104873
Band
70MHz
Dimensions
306x138x124mm
Input coupling
AC, DC, GND
Input impedance
1MΩ/24pF
Input sensitivity
1mV/div...20V/div
Interface
USB
Kind of display used
colour
Manufacturer
UNI-T
Max. input voltage
400V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
64kpts
Number of channels
2
Rise time
≤5ns
Sampling
500Msps
Standard equipment
mains cable
Supply voltage
100...240V AC
Time base
2n...50s/div
Type of oscilloscope
digital
Trigger
video signal
Brand
UNI-T
