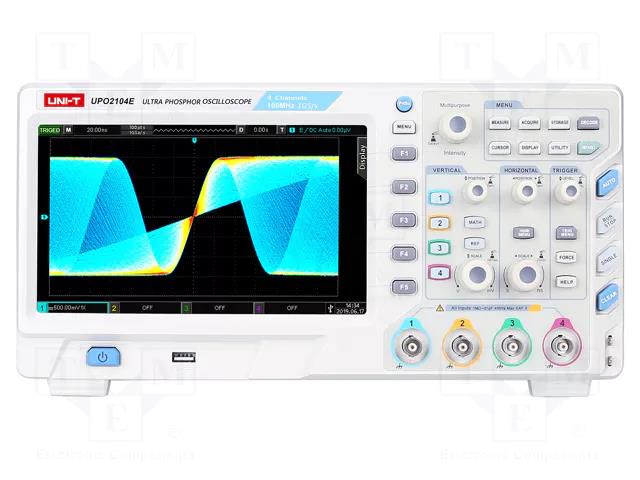

Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 56Mpts; LCD TFT 8" UNI-T
Product Code: UPO2104E
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 56Mpts; LCD TFT 8" UNI-T
Specifications
Supplier product description
Oscilloscope: digital; Ch: 4; 100MHz; 1Gsps; 56Mpts; LCD TFT 8"
Supplier parameters
Product code
UPO2104E
Brand
UNI-T
Supplier's product code
UPO2104E
Product ID
U-2596408
Band
100MHz
Conform to the norm
EN 61010
Dimensions
336x164x108mm
Display resolution
800x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/21pF
Input sensitivity
1mV/div...20V/div
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
UNI-T
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
56Mpts
Number of channels
4
Related items
MSO/UPO2000-AUTO
Rise time
≤3.5ns
Sampling
1Gsps
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
5n...50s/div
Type of oscilloscope
digital
Trigger
video signal
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
