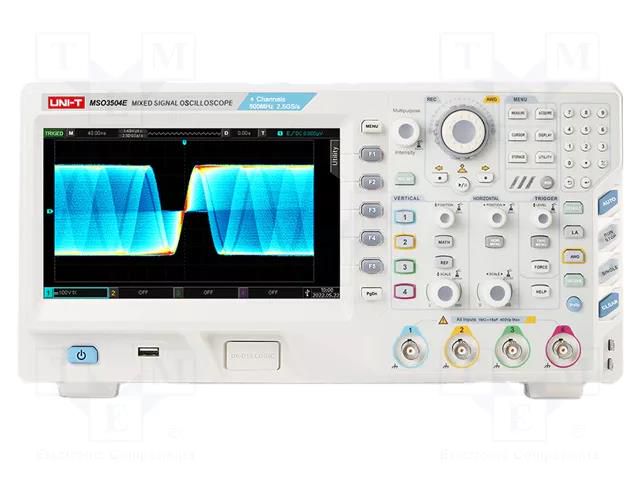

Oscilloscope: digital; Ch: 4; 500MHz; 2,5Gsps; 250Mpts; LCD TFT 8" UNI-T
Product Code: MSO3504E
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-17 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
Oscilloscope: digital; Ch: 4; 500MHz; 2,5Gsps; 250Mpts; LCD TFT 8" UNI-T
Useful information
Specifications
Supplier product description
Oscilloscope: digital; Ch: 4; 500MHz; 2,5Gsps; 250Mpts; LCD TFT 8"
Useful information
Supplier parameters
Product code
MSO3504E
Band
500MHz
Dimensions
370x185x115mm
Display resolution
800x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/18pF
Input sensitivity
1mV/div...1V/div (50Ω)
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
UNI-T
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
250Mpts
Number of channels
4
Related items
MSO/UPO3000CS-AUTO
Rise time
≤750ps
Sampling
2,5Gsps
Standard equipment
USB cable
Supply voltage
100...240V AC
Time base
1n...1ks/div
Type of oscilloscope
digital
Trigger
rising-edge
Vertical resolution
8bit
Product ID
U-3845397
Brand
UNI-T
Supplier's product code
MSO3504E
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
