Product description

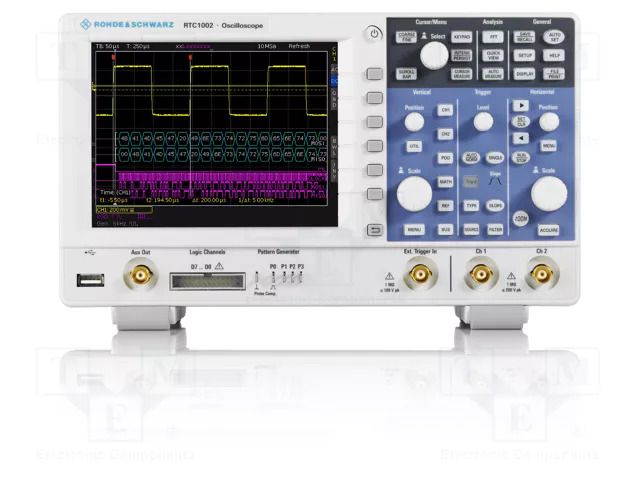

Oscilloscope: mixed signal; Ch: 2; 300MHz; 1Gsps; 1Mpts; RTC1000 ROHDE & SCHWARZ
Useful information
Specifications
Supplier product description
Oscilloscope: mixed signal; Ch: 2; 300MHz; 1Gsps; 1Mpts; RTC1000
Useful information
Supplier parameters
Product code
RTC1K-COM2
Brand
ROHDE & SCHWARZ
Supplier's product code
RTC1K-COM2
Product ID
U-315158
Additional functions
voltmeter
Band
300MHz
Dimensions
285x175x140mm
Display resolution
640x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/14pF
Input sensitivity
1mV/div...10V/div
Interface
USB
Kind of display used
colour
Manufacturer
ROHDE & SCHWARZ
Manufacturer series
RTC1000
Max. input voltage
150V
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
1Mpts
Number of channels
2
Rise time
≤1.15ns
Sampling
1Gsps
Standard equipment
mains cable
Supply voltage
100...240V AC
Supply voltage 400Hz
100...120V AC
Time base
1n...100s/div
Type of oscilloscope
mixed signal
Trigger
video signal
Trigger coupling
AC
Trigger modes
automatic
Vertical resolution
8bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
