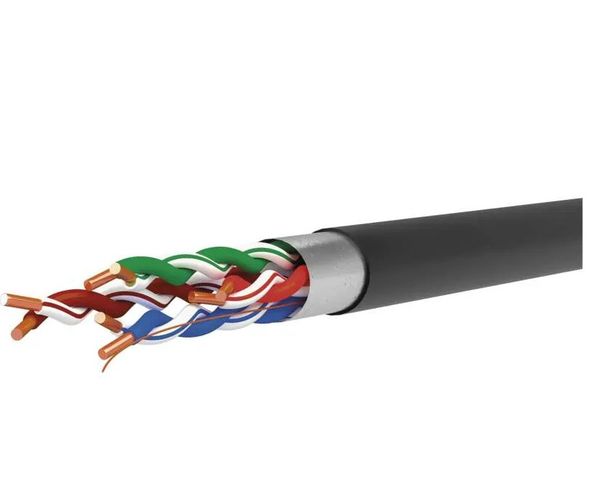

Outdoor F/UTP CAT5E cable 24AWG, black, Eca
Product Code: KO/FTP/S/EMOS
Home delivery 1-4 b.d.
Delivery to DPD Pickup locations 1-4 b.d.
Delivery terms
Order processing
Order processing
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
We will notify you via SMS and email when your order is being delivered.
Quantity in shop
 Not available | Lemona Estonia warehouse |
 293 m | Lemona Vilnius warehouse 1 |
| 305 m | Lemona Vilnius warehouse 2 |
| Not available | Lemona Kaunas warehouse |
| 305 m | Lemona Klaipėda warehouse |
| 305 m | Lemona Šiauliai warehouse |
| >800 m | Lemona central warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 1000 kgs) | €5.00 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 50€.
3,50
Product description
| cable structure | wire |
| category | CAT5E |
| material of the inner conductor | copper (Cu) |
| shielding | no |
| AWG | 24 |
| sheath color | black (RAL 9005) |
| wire insulation | HDPE |
| maximum operating humidity | 93% |
| mounting temperature | +5 °C to +60 °C |
| dangerous substances | none |
| highest supported protocol | 1000 Base-TX (Gigabit Ethernet) |
| connectors | no |
| cable sheath | PE |
| low smoke zero halogen (LSZH) coat | no |
| jacket diameter | 5–6 mm |
| inner conductor diameter | 0.48 mm |
| storage temperature | -20 °C to +60 °C |
| conductor insulation thickness | 0.22 mm |
| jacket thickness | 1.1 mm |
| reaction to the fire | Eca |
| marking of cable | UTP Cat5E PE OUTDOOR 1 – 305 m |
| number of wires | 8 |
| use | outdoor |
Specifications
SKU
437020
Weight
0 kg.
Barcodes
8592920141397
Brand
Cable color
Black
category
CAT 5e
Conductor
Cu
Product code
KO/FTP/S/EMOS
Supplier product description
Supplier parameters
AWG
24
cable sheath
PE
cable structure
wire
category
CAT5E
conductor insulation thickness
0.22 mm
connector protection type
–
connectors
no
dangerous substances
none
designed for cable
–
highest supported protocol
1000 Base-TX (Gigabit Ethernet)
inner conductor diameter
0.48 mm
jacket diameter
5–6 mm
jacket thickness
1.1 mm
length
305 m
low smoke zero halogen (LSZH) coat
no
marking of cable
UTP Cat5E PE OUTDOOR 1 – 305 m
material of the inner conductor
copper (Cu)
maximum operating humidity
93 %
mounting temperature
+5 °C to +60 °C
number of wires
8
packaging
305 m, paper box
product
FTP cable without connectors
reaction to the fire
Eca
sheath color
black (RAL 9005)
shielding
no
storage temperature
-20 °C to +60 °C
strength member
–
type
FTP CAT 5E PE
use
outdoor
warranty period
25 years
wire insulation
HDPE
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
