Product description

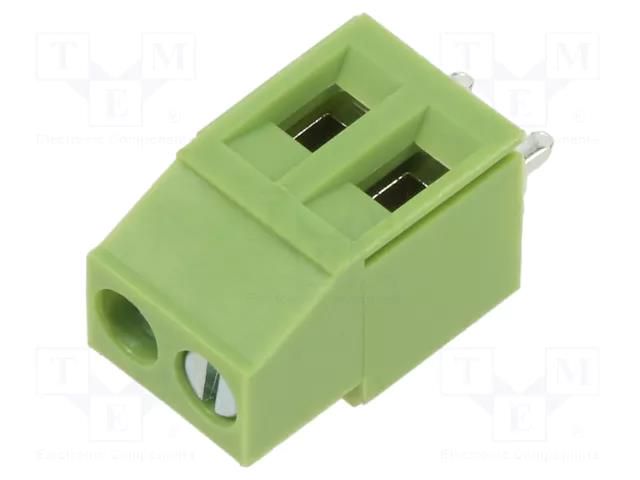

Connector: PCB terminal block; terminal; 20A; 300V; angled 90° XINYA
Specifications
Supplier product description
Connector: PCB terminal block; terminal; 20A; 300V; angled 90°
Supplier parameters
Product code
XY129VB-2P-5.0-GN
Brand
XINYA
Supplier's product code
XY129VB-2P-5.0-GN
Product ID
U-3097257
Body material
polyamide
Colour
green
Connector
terminal
Connector pinout layout
1x2
Contact material
brass
Contacts pitch
5mm
Current rating
20A
Electrical mounting
screw terminal
Flammability rating
UL94V-0
Manufacturer
XINYA
Mechanical mounting
on PCBs
Number of terminals
2
Number of ways
2
Operating temperature
-40...105°C
Rated voltage
300V
Spatial orientation
angled 90°
Type of connector
PCB terminal block
Wire cross-section
2.5mm<sup>2</sup>
Wire size
26AWG...12AWG
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
